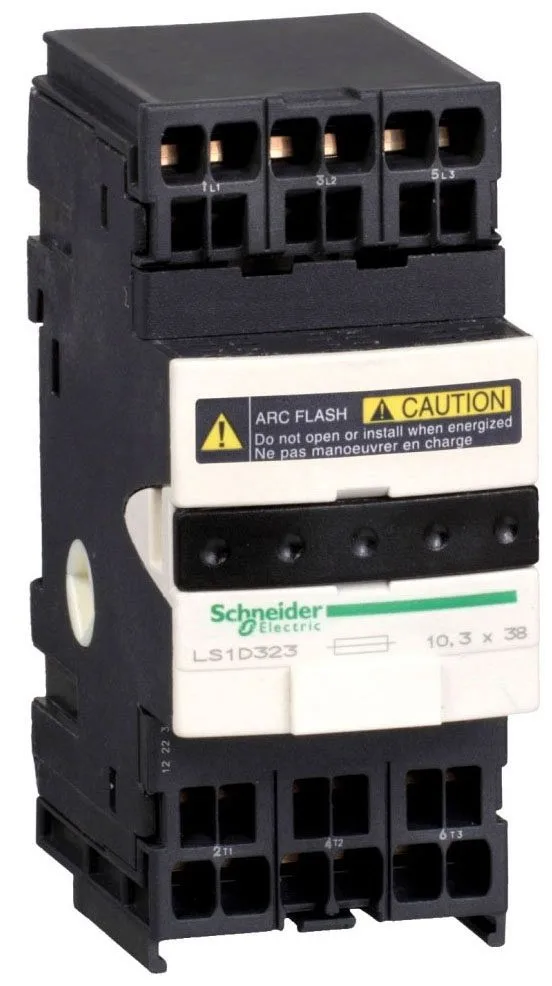

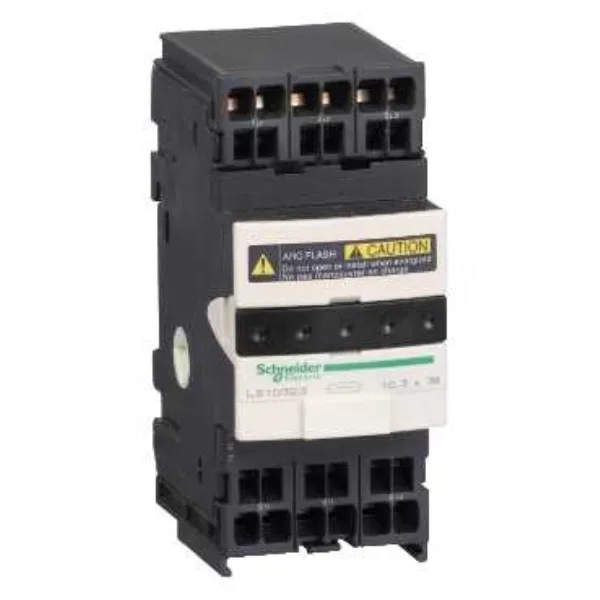

Schneider Electric LS1D323
MPNLS1D323
Obsolete
Square D LS1D323 Fuseholder 32A Spring Terminal Tesys|SQUARE D LS1D323: FUSEHOLDER 32A SPRING TERMINAL TESYS
$43.21 – $83.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | GG AM |
| Control type | Toggle |
| Product or component type | Fuse-disconnector |
| [Ue] rated operational voltage | 600 V |
| [Ie] rated operational current | 25 Apower circuit |
| Poles description | 3P |
| IP degree of protection | IP20 |
| Mounting support | Rail |
| Mounting position | Vertical +/- 23°) |
| Connections - terminals | spring terminals 2 0.002...0.009 in² (1...6 mm²)solid spring terminals 2 0.002...0.009 in² (1...6 mm²)flexible without cable end spring terminals 2 0.002...0.006 in² (1...4 mm²)flexible with cable end |
| Depth | 2.7 in (68.3 mm) |
| Width | 1.8 in (45 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 3.5 in (89 mm) |
| Standards | IEC 60947-2 IEC 60947-4-1 IEC 60947-1 |
| Range | TeSys |
| Category | US10I1222341 |
| Fuse size | 10 x 38 mm |
| Local signalling | Blown fuse indication |
| Device short name | LS1D |
| Protective treatment | TH |
| Associated fuse rating | 30 A aM 30 A gG |
| Ambient air temperature for operation | -58...158 °F (-50...70 °C) operation |
MPN
LS1D323
