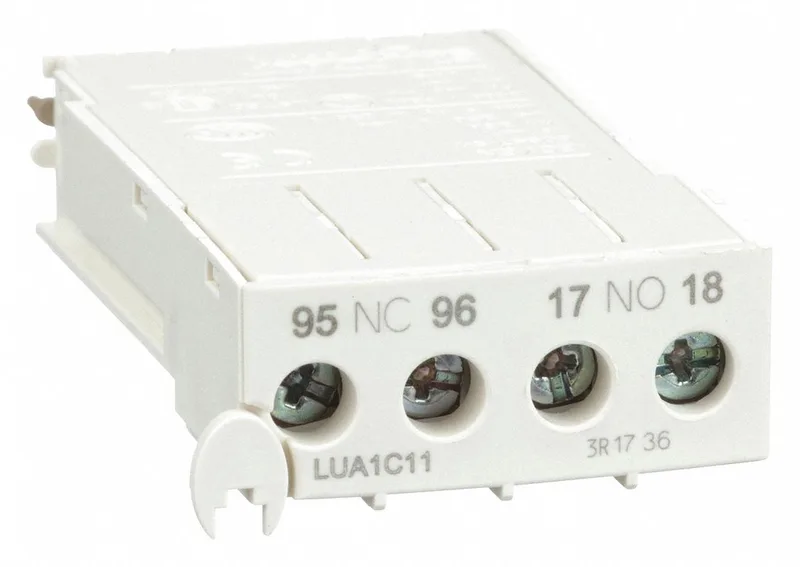

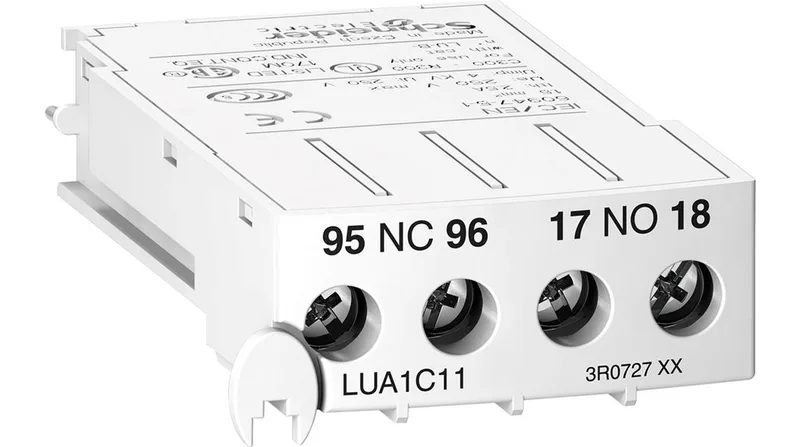

Schneider Electric LUA1C11
MPNLUA1C11
Active
Signalling auxiliary contacts, TeSys Ultra, 1 NO and 1 NC|Signalling auxiliary contacts, TeSys Ultra, 1 NO and 1 NC
$18.83Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range | TeSys |
| Device short name | LUA1 |
| Signalling function | Fault signalling Indicating rotary knob in ready position |
| Connections - terminals | screw clamp terminals |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Product or component type | Auxiliary contact |
| Auxiliary contact composition | 1 NO + 1 NC |
| Voltage | 250 V CSA 250 V IEC 60947-5-1 250 V UL |
| [Ue] rated operational voltage | <= 250 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
MPN
LUA1C11
