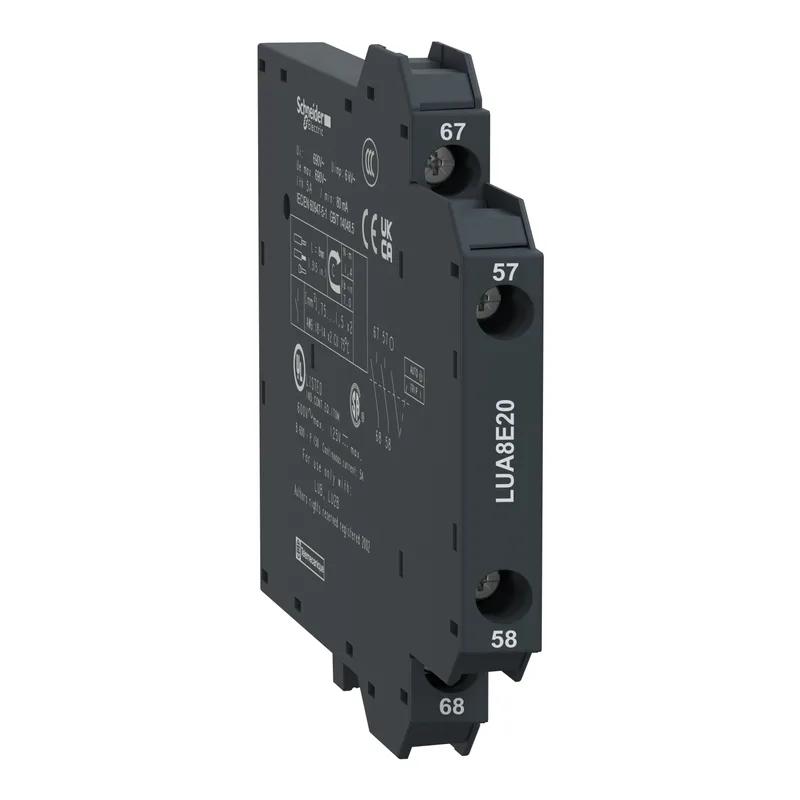

Schneider Electric LUA8E20
MPNLUA8E20
Active
Auxiliary Contact, TeSys Ultra, 2NO, 690V AC/DC, START-STOP Signaling, Screw Terminals|Auxiliary Contact, TeSys Ultra, 2 Normally Open, 690 Volt AC/DC, For START-STOP Signaling, Screw Clamp Terminals
$19.05Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Auxiliary contact |
| Minimum switching voltage | 17 V |
| [Ue] rated operational voltage | 690 V AC 690 V DC |
| Minimum switching current | 80 mA |
| [Ith] conventional free air thermal current | 5 A |
| Connections - terminals | screw clamp terminals |
| Range | TeSys |
| Category | US10I1122399 |
| Device short name | LUA8 |
| Signalling function | Start-stop |
| Auxiliary contact composition | 2 NO |
MPN
LUA8E20
