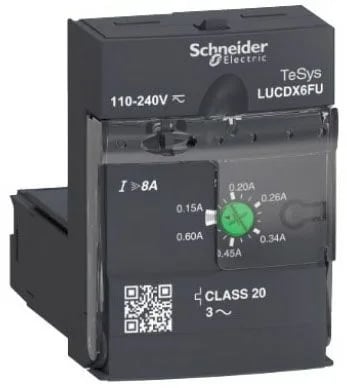

Schneider Electric LUCDX6FU

Schneider TeSys Ultra LUCDX6FU Control Unit, Active Producti

MPNLUCDX6FU
Active

Schneider TeSys Ultra control unit LUCDX6FU, manual reset, 110…240 V AC / 110…220 V DC control circuit, plug-in mounting, IP20 front protection.

$68.58 – $162.59Ref. price · indicative, final on quote
Schneider Electric LUCDX6FU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LUCDX6FU key specifications
ParameterValue
Load type3-phase motor self-cooled
Range of productTeSys Ultra
Product or component typeAdvanced control unit
Immunity to voltage dips70 % / 500 ms IEC 61000-4-11
Coil voltage110...240 V AC 110...220 V DC
Voltage690 V IEC 60947-6-2 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
Control circuit voltage limits88...264 V AC 110...240 V in operation 88...242 V DC 110...220 V in operation 55 V AC 110...240 V drop-out 55 V DC 110...220 V drop-out
[Ue] rated operational voltage690 V AC
[Uimp] rated impulse withstand voltage6 kV IEC 60947-6-2
Typical current consumption280 mA 110...240 V AC I maximum while closing with LUB12 280 mA 110...240 V AC I maximum while closing with LUB32 280 mA 110...240 V AC I maximum while closing with LUB38 280 mA 110...220 V DC I maximum while closing with LUB12 280 mA 110...220 V DC I maximum while closing with LUB32 280 mA 110...220 V DC I maximum while closing with LUB38 35 mA 110...240 V AC I rms sealed with LUB12 25 mA 110...240 V AC I rms sealed with LUB32 25 mA 110...240 V AC I rms sealed with LUB38 35 mA 110...220 V DC I rms sealed with LUB12 25 mA 110...220 V DC I rms sealed with LUB32 25 mA 110...220 V DC I rms sealed with LUB38
Rated motor current adjustment range0.15...0.6 A
Motor power0.09 kW 400...440 V AC 50/60 Hz

All specifications

LUCDX6FU additional specifications
ParameterValue
Network frequency40...60 Hz
Phase failure sensitivityYes
Utilisation categoryAC-44 AC-43 AC-41
IP degree of protectionIP20 front panel and wired terminals IEC 60947-1 IP20 other faces IEC 60947-1 IP40 front panel outside connection zone IEC 60947-1
Shock resistance10 gn power poles open IEC 60068-2-27 15 gn power poles closed IEC 60068-2-27
Operating altitude6561.68 ft (2000 m)
Vibration resistance2 gn 5...300 Hz power poles open IEC 60068-2-6 4 gn 5...300 Hz power poles closed IEC 60068-2-6
Non-dissipating shock wave1 kV serial mode IEC 60947-6-2 2 kV common mode IEC 60947-6-2
Depth2.4 in (60 mm)
Width1.8 in (45 mm)
Height2.6 in (66 mm)
StandardsEN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier
RangeTeSys
ResetManual reset
CategoryUS10I1122397
Fixing modePlug-in (front face)
Operating time35 ms opening with LUB12 control circuit 35 ms opening with LUB32 control circuit 35 ms opening with LUB38 control circuit 50 ms closing with LUB12 control circuit 50 ms closing with LUB32 control circuit 50 ms closing with LUB38 control circuit
Fire resistance1760 °F (960 °C) parts supporting live components IEC 60695-2-12 1202 °F (650 °C) IEC 60695-2-12
Heat dissipation2 W control circuit with LUB12 3 W control circuit with LUB32 3 W control circuit with LUB38
Device short nameLUCD
Compatibility codeLUCD
Device applicationMotor control Motor protection
Tripping threshold14.2 x Ir +/- 20 %
Protective treatmentTH IEC 60068
Thermal overload classClass 20 40...60 Hz -13...158 °F (-25...70 °C) IEC 60947-6-2 Class 20 40...60 Hz -13...158 °F (-25...70 °C) UL 508
Immunity to microbreaks3 ms
Main function availableProtection against overload and short-circuit Protection against phase failure and phase imbalance Manual reset Earth fault protection
Safe separation of circuit400 V SELV between the control and auxiliary circuits IEC 60947-1 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
Product specific applicationBasic protection and advanced functions, communication
Resistance to fast transients2 kV 3 serial link IEC 61000-4-4 4 kV 4 all circuits except for serial link IEC 61000-4-4
Resistance to radiated fields9.1 V/m (10 V/m) 3 IEC 61000-4-3
Immunity to radioelectric fields10 V IEC 61000-4-6
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)
Resistance to electrostatic discharge8 kV 3 in open air IEC 61000-4-2 8 kV 4 on contact IEC 61000-4-2

Product details

TeSys Ultra Control Unit

The LUCDX6FU is a Schneider TeSys Ultra advanced control unit for motor protection, rated for 110…240 V AC or 110…220 V DC control circuits and offering manual reset, plug-in mounting on a front face, and IP20 protection on the front panel and wired terminals. It provides protection against overload, short-circuit, phase failure, imbalance, and earth fault, with a tripping threshold of 14.2 x Ir ±20 % and Class 20 thermal overload capability per IEC 60947-6-2.

Compliance Package

The LUCDX6FU carries approvals under EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1 (with phase barrier) and CSA C22.2 No 60947-4-1 (with phase barrier), covering the major global motor-protection frameworks. The control circuit provides safe separation at 400 V SELV per IEC 60947-1. Heat dissipation runs 2 W with LUB12 control circuit, 3 W with LUB32 or LUB38—factor this into panel thermal budget.

Plug-in mounts to the front face. Operating time: 35 ms opening, 50 ms closing. Vibration rated 2 gn (poles open) / 4 gn (poles closed) over 5–300 Hz. Shock rated 10 gn (poles open) / 15 gn (poles closed). TH protective treatment per IEC 60068 for humid environments.

Frequently asked questions

What are the key ratings and compliance for LUCDX6FU?

It operates on 110-240 V AC or 110-220 V DC control voltage, dissipates 2-3 W, and meets EN/IEC/UL/CSA standards for motor protection.

What is the depth of LUCDX6FU?

The depth is 2.4 in (60 mm).

What compliance documentation is available?

The unit is compliant with EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1 (with phase barrier), and CSA C22.2 No 60947-4-1 (with phase barrier).
