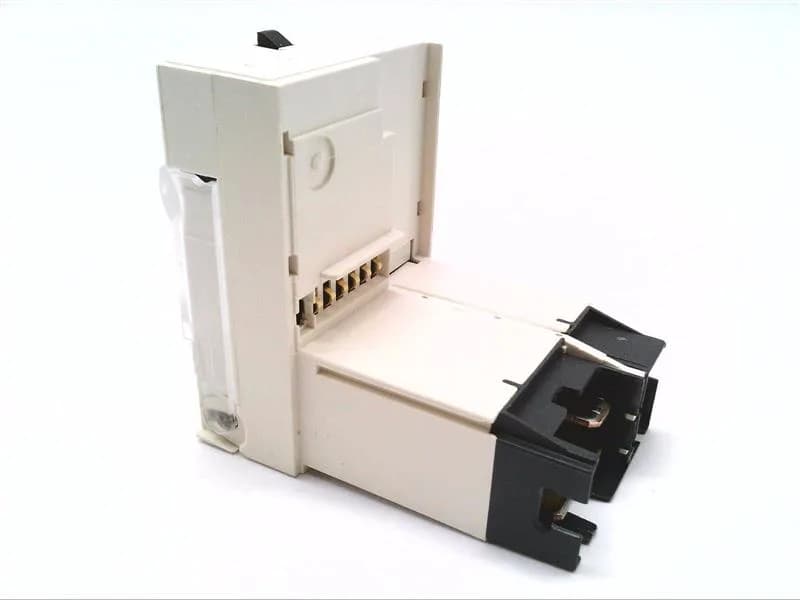

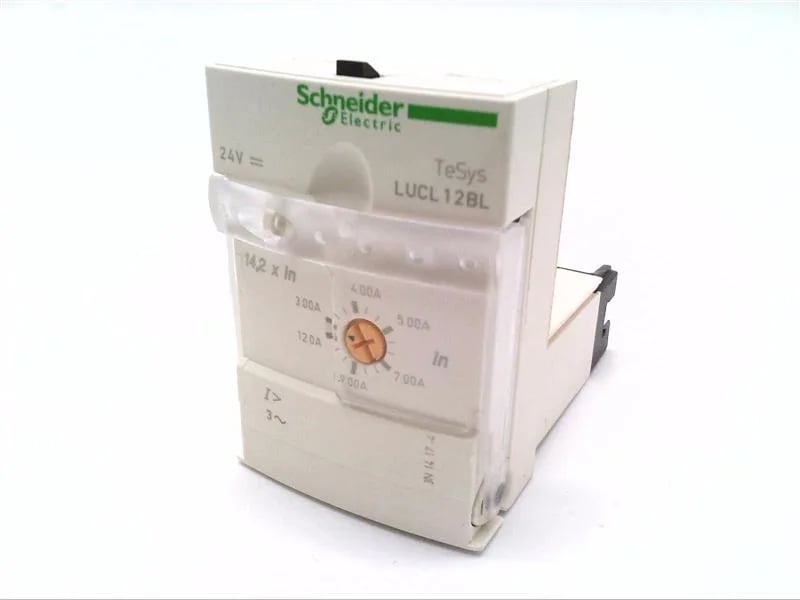

Schneider Electric LUCL12BL

Schneider LUCL12BL TeSys Ultra Magnetic Control Unit, 24 VDC

MPNLUCL12BL
Active

Schneider Electric TeSys Ultra LUCL12BL magnetic control unit, 24 V DC coil, 690 V AC rated operational voltage, IP20/IP40.

$149.30Ref. price · indicative, final on quote
Schneider Electric LUCL12BL datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LUCL12BL key specifications
ParameterValue
Load type3-phase motor - cooling: self-cooled
Range of productTeSys Ultra
Product or component typeMagnetic control unit
Immunity to voltage dips70 % / 500 ms conforming to IEC 61000-4-11
Coil voltage24 V DC
Voltage690 V conforming to IEC 60947-6-2 600 V conforming to UL 60947-4-1 600 V conforming to CSA C22.2 No 60947-4-1
Control circuit voltage limits20...27 V for DC circuit 24 V in operation 14.5 V for DC circuit 24 V drop-out
[Ue] rated operational voltage690 V AC
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-6-2
Typical current consumption130 mA at 24 V DC I maximum while closing with LUB12 220 mA at 24 V DC I maximum while closing with LUB32 220 mA at 24 V DC I maximum while closing with LUB38 60 mA at 24 V DC I rms sealed with LUB12 80 mA at 24 V DC I rms sealed with LUB32 80 mA at 24 V DC I rms sealed with LUB38
Rated motor current adjustment range3...12 A
Motor power5.5 kW at 400...440 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 9 kW at 690 V AC 50/60 Hz

All specifications

LUCL12BL additional specifications
ParameterValue
Network frequency40...60 Hz
Utilisation categoryAC-43 AC-41 AC-44
IP degree of protectionIP20 front panel and wired terminals conforming to IEC 60947-1 IP20 other faces conforming to IEC 60947-1 IP40 front panel outside connection zone conforming to IEC 60947-1
Shock resistance10 gn power poles open conforming to IEC 60068-2-27 15 gn power poles closed conforming to IEC 60068-2-27
Operating altitude2000 m
Vibration resistance2 gn, 5...300 Hz, power poles open conforming to IEC 60068-2-6 4 gn, 5...300 Hz, power poles closed conforming to IEC 60068-2-6
Non-dissipating shock wave1 kV serial mode conforming to IEC 60947-6-2 2 kV common mode conforming to IEC 60947-6-2
Depth60 mm
Width45 mm
Height66 mm
StandardsEN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier
RangeTeSys
Fixing modePlug-in (front face)
Operating time35 ms opening with LUB12 for control circuit 35 ms opening with LUB32 for control circuit 35 ms opening with LUB38 for control circuit 70 ms closing with LUB12 for control circuit 70 ms closing with LUB32 for control circuit 70 ms closing with LUB38 for control circuit
Fire resistance960 °C parts supporting live components conforming to IEC 60695-2-12 650 °C conforming to IEC 60695-2-12
Heat dissipation2 W for control circuit with LUB12 3 W for control circuit with LUB32 3 W for control circuit with LUB38
Device short nameLUCL
Compatibility codeLUCL
Device applicationMotor control Motor protection
Tripping threshold14.2 x Ir +/- 20 %
Protective treatmentTH conforming to IEC 60068
Immunity to microbreaks3 ms
Main function availableShort-circuit protection Manual reset
Safe separation of circuit400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1
Product specific applicationProtection of variable speed drive or soft startsoft stop unit
Resistance to fast transients2 kV class 3 serial link conforming to IEC 61000-4-4 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4
Resistance to radiated fields10 V/m 3 conforming to IEC 61000-4-3
Immunity to radioelectric fields10 V conforming to IEC 61000-4-6
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C
Resistance to electrostatic discharge8 kV level 3 in open air conforming to IEC 61000-4-2 8 kV level 4 on contact conforming to IEC 61000-4-2

Product details

What It Is and When to Source It

The LUCL12BL is a magnetic control unit from the TeSys Ultra family, designed for motor control and protection applications. It sits between the line-side short-circuit protection and the motor load, with the specific role of protecting variable-speed drives and soft-start/soft-stop units from line-side faults and phase-loss events. The control circuit voltage limits are 20…27 V for operation; dropout occurs at 14.5 V. Typical coil current consumption while closing ranges 130…220 mA depending on the control relay used (LUB12, LUB32, LUB38); sealed current is 60…80 mA.

Utilisation categories are AC-41, AC-43, and AC-44 for motor switching. Tripping threshold is 14.2 x Ir ±20%. Dimensions: 45 mm wide, 66 mm high, 60 mm deep. Plug-in mounting from the front face. The IP20 front panel rating (wired terminals) and IP40 other faces allow use in standard enclosures; conformally coated (TH treatment,) for humid environments. SELV separation between control and main circuits (400 V) ensures safe interfacing with 24 V DC PLC outputs.

Listed to EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, and CSA C22.2 No 60947-4-1 with phase barrier. The phase barrier is included in the kit — no separate ordering needed. Fire resistance to 960 °C on live support parts. Vibration resistance: 4 gn (poles closed) and 2 gn (poles open) over 5–300 Hz. Shock resistance: 15 gn closed, 10 gn open. The device is immune to voltage dips of 70 % over 500 ms (IEC 61000-4-11) and microbreaks up to 3 ms.

Frequently asked questions

What is the depth of LUCL12BL?

60 mm.

What is the range of LUCL12BL?

TeSys, more specifically the TeSys Ultra series.

What compliance standards does LUCL12BL meet?

It is certified to EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, and CSA C22.2 No 60947-4-1, all with phase barrier. It also meets IP20/IP40 enclosure ratings and has TH protective treatment per IEC 60068.
