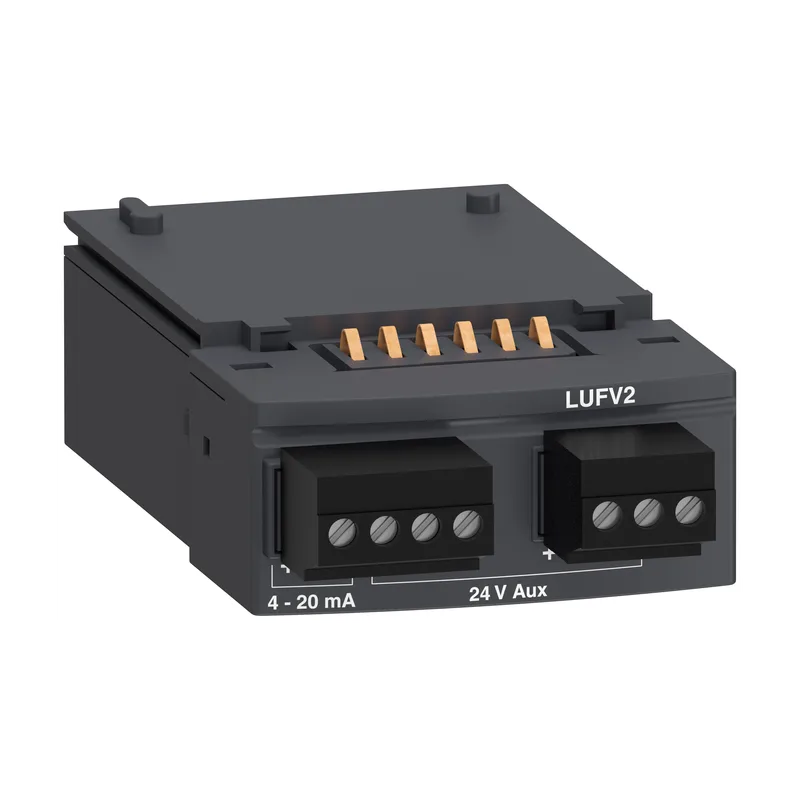

Schneider Electric LUFV2
MPNLUFV2
Active
MOTOR LOAD INDICATION MODULE 4-20 MILLIAMPS|MOTOR LOAD INDICATION MODULE 4-20 MILLIAMPS
$64.77Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Associated cable type | AWG 26...AWG 16 |
| Type of output signal | Value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD Value of I average/Ir ratio within the range of 0 to 3 for LUCC |
| Product or component type | Function module |
| Supply voltage | 24 V DC |
| Analogue output current | 4...20 mA |
| Mounting mode | Plug-in |
| Mounting location | Front side |
| Connection pitch | 0.15 in (3.81 mm) |
| Connections - terminals | screw clamp terminals 1 0.0002...0.002 in² (0.14...1 mm²) flexible without cable end screw clamp terminals 1 0.0002...0.002 in² (0.14...1 mm²) rigid without cable end screw clamp terminals 1 0.0004...0.0008 in² (0.25...0.5 mm²) flexible with cable end screw clamp terminals 1 0.0004...0.002 in² (0.25...1 mm²) flexible with cable end screw clamp terminals 2 0.0002...0.0008 in² (0.14...0.5 mm²) rigid without cable end screw clamp terminals 2 0.0002...0.001 in² (0.14...0.75 mm²) flexible without cable end screw clamp terminals 2 0.0004...0.0005 in² (0.25...0.34 mm²) flexible with cable end screw clamp terminals 2 0.0008 in² (0.5 mm²) flexible with cable end |
| Range | TeSys |
| Category | US10I1122399 |
| Device short name | LUF |
| Tightening torque | 1.8...2.21 lbf.in (0.2...0.25 N.m) 0.10 in (2.5 mm) flat |
| Load impedance ohmic | 100 Ohm typical <= 500 Ohm |
| Measurement accuracy | +/- 10 % with multifunction control unit 1 % of Ir +/- 6 % with advanced control unit |
| Main function available | Indication of motor load |
MPN
LUFV2
