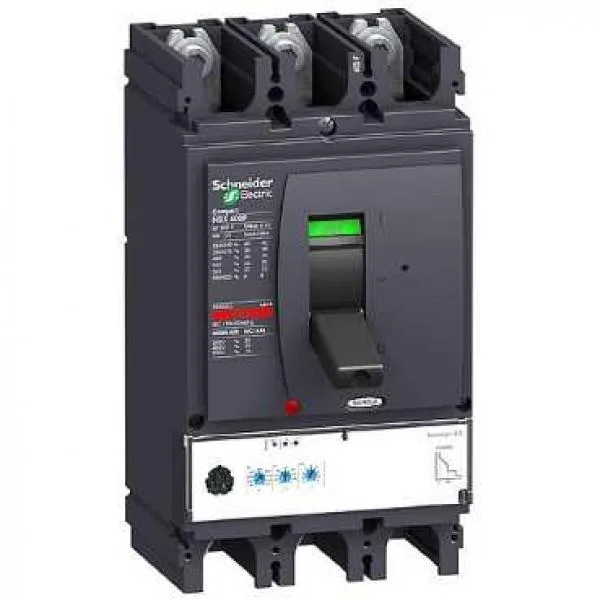

Schneider Electric LV4-32893
MPNLV4-32893
Obsolete
LV4-32893 - CIRCUIT BREAKER by MERLIN GERIN
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Trip unit type | Electronic |
| Range of product | ComPact NSX400...630 |
| Long-Time protection delay adjustment type tr | Fixed |
| Short-Time protection delay adjustment type tsd | Fixed |
| Short-Time protection Pick-Up adjustment type isd | Adjustable 9 settings |
| Voltage withstand | 8 kV |
| Voltage insulation | 800 V AC 50/60 Hz |
| Poles | 3 |
| Utilization category | Category A |
| Ik degree of protection | IK07 conforming to IEC 62262 |
| Mounting | Fixed |
| Terminal pitch | 45 mm |
All specifications
| Parameter | Value |
|---|---|
| Connection surface top | Front |
| Connection surface bottom | Front |
| Altitude max | 0 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Humidity max | 0 |
| Depth | 110 |
| Width | 140 |
| Height | 255 |
| Electrical life cycles | 2000 cycles at 690 V In 6000 cycles at 690 V In/2 4000 cycles at 440 V In 8000 cycles at 440 V In/2 |
| Mechanical life cycles | 15000 cycles |
| Standards | EN/IEC 60947 |
| Range | ComPact |
| IP rating | Class II |
| Control_type | Toggle |
| Frequency | 50/60 Hz |
| Network_type | AC |
| Package_type | PCE |
| Thermal memory | 20 minutes before and after tripping |
| Trip unit name | MicroLogic 2.3 |
| Protection_type | L: for overload protection (long time) So: for short time short-circuit protection with fixed delay I: for instantaneous short-circuit protection |
| Safety category | N 50 kA 415 V AC |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Trip unit rating | 630 A at 40 °C |
| Application_type | Distribution |
| Supply voltage | 690 |
| Device short name | NSX630N |
| Breaking cap icu | 85 |
| Switching current | 630 |
| Storage temperature | -50...85 °C |
| Earth-Leakage protection | Without |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Trip unit protection functions | LSoI |
| Main_product_or_component_type | Circuit breaker |
| Zone selective interlocking zsi | Without |
| Operating temperature | -25 |
| Number of slots for electrical auxiliaries | 6 slot(s) |
| [Tr] Long-Time protection delay adjustment range | 16 s at 6 x Ir |
| [Ir] Long-Time protection Pick-Up adjustment range | 250...630 A |
MPN
LV4-32893
