Schneider Electric LV426824
MPNLV426824
Obsolete

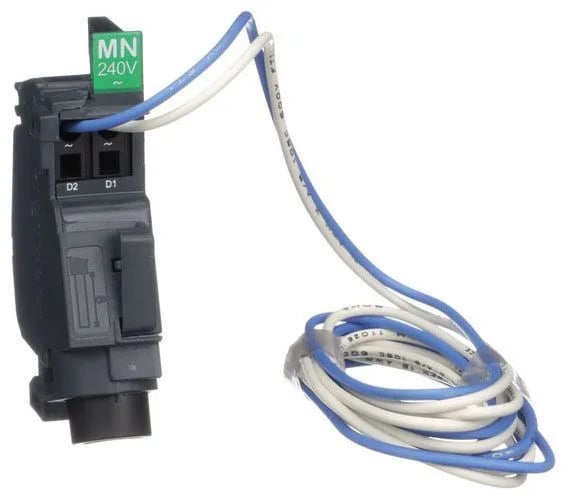

Square D LV426824 Circuit Breaker Undervoltage Trip 240V AC Wired|Square D LV426824 Circuit Breaker Undervoltage Trip 240V AC Wired
$411.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | ComPacT NSXm |
| Voltage release type | Opening coil Undervoltage release |
| Product or component type | Voltage release |
| Coil voltage | 220...240 V AC 50 Hz 208...240 V AC 60 Hz |
| Cable length | 3.3 ft (1 m) |
| Wire stripping length | 0.3 in (8 mm) |
| Auxiliary connection terminal | pre-wired 0...0.001 in² (0...0.8 mm²) AWG 18)stranded copper |
| Response time | < 50 ms |
| Range | ComPact |
| Category | US10DE201136 |
| Device short name | MN |
| Device application | Control |
| Operating threshold | 0.35...0.7 x Un opening 0.85 x Un closing |
MPN
LV426824
