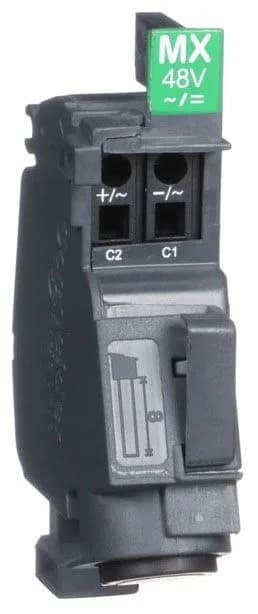

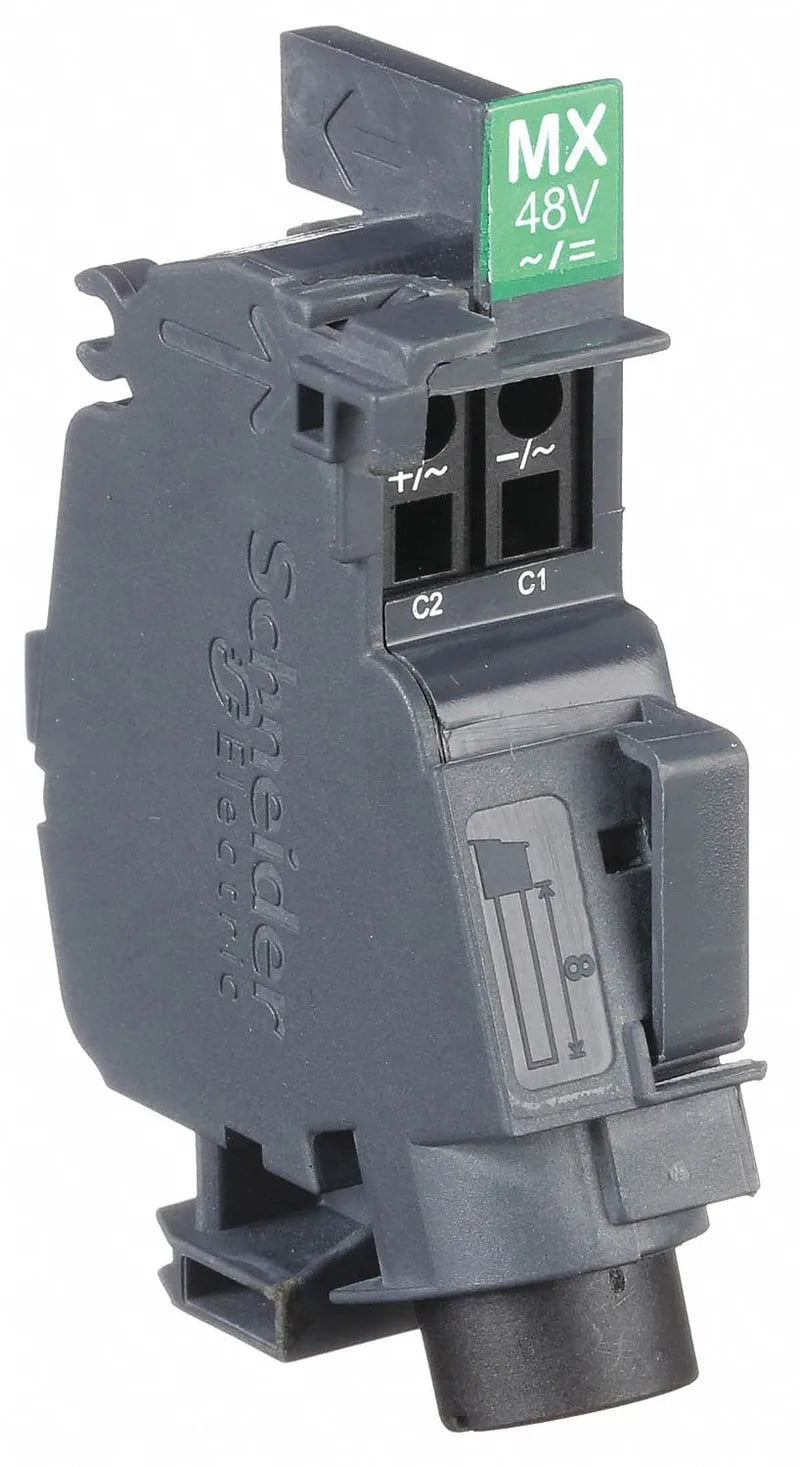

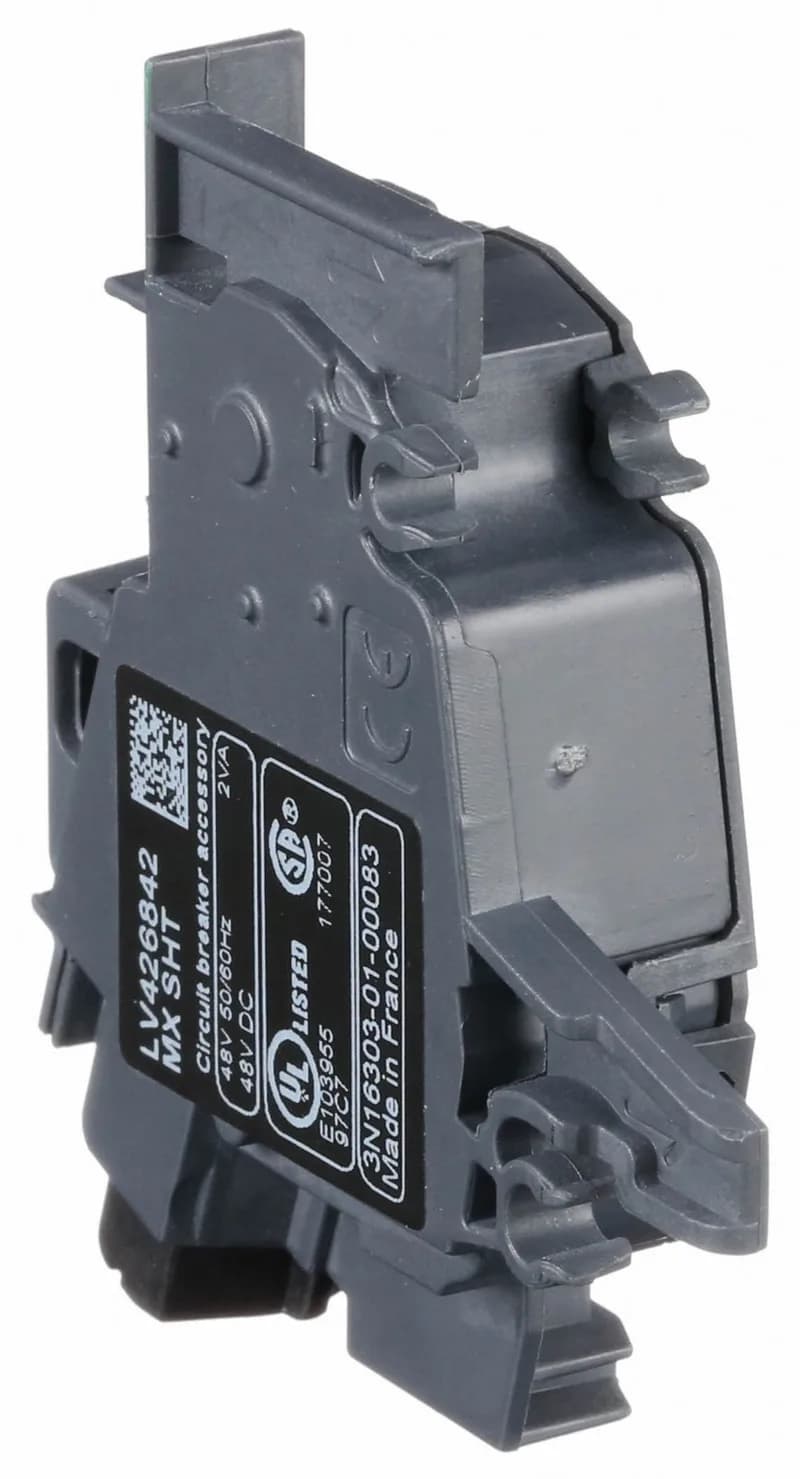

Schneider Electric LV426842
MPNLV426842
Active
SQUARE D Shunt Trip: Shunt Trip, PowerPact B and Compact NSXm Circuit Breaker, 48V AC
$354.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Range of product | ComPacT NSXm |
| Control signal type | Maintained Impulse |
| Voltage release type | Opening coil Shunt trip release |
| Product or component type | Voltage release |
| Coil voltage | 48 V AC 50/60 Hz 48 V DC |
| Auxiliary connection terminal | spring |
| Response time | < 50 ms |
| Range | ComPact |
| Category | US10DE201136 |
| Impulse duration | >= 20 ms |
| Device short name | MX |
| Device application | Control |
| Operating threshold | 0.7 Un opening |
MPN
LV426842
