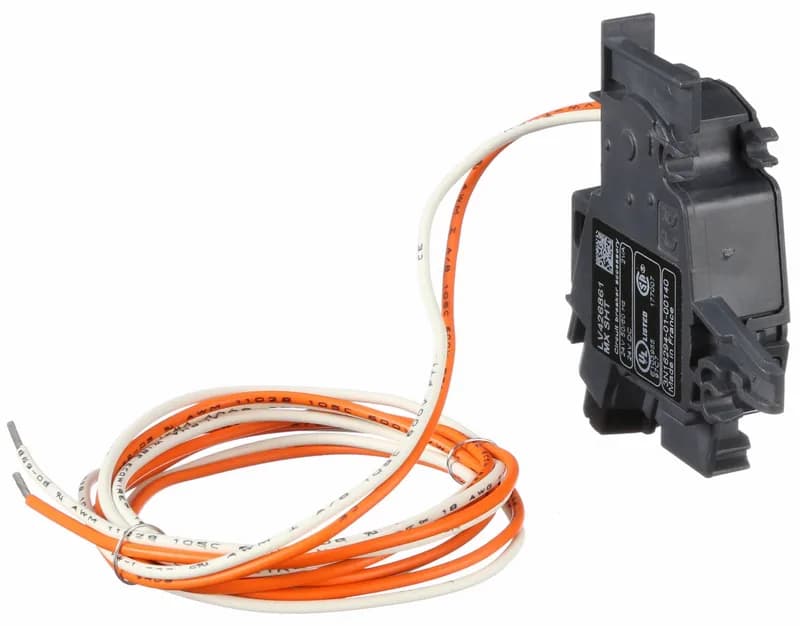

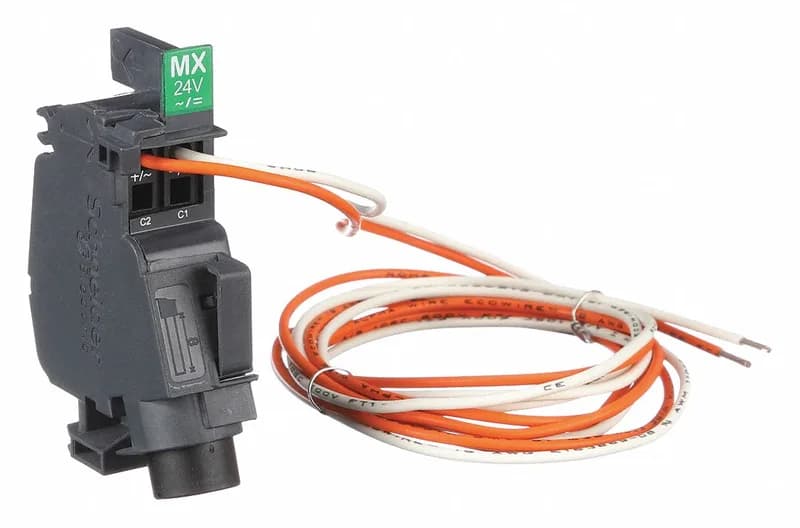

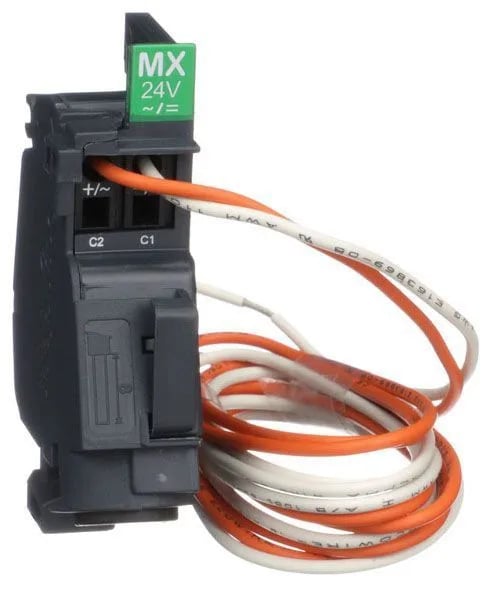

Schneider Electric LV426861
MPNLV426861
Active
CIRCUIT BRKR SHUNT TRIP 24V AC/DC WIRED|CIRCUIT BRKR SHUNT TRIP 24V AC/DC WIRED
$354.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Range of product | ComPacT NSXm |
| Control signal type | Impulse Maintained |
| Voltage release type | Opening coil Shunt trip release |
| Product or component type | Voltage release |
| Coil voltage | 24 V AC 50/60 Hz 24 V DC |
| Cable length | 3.3 ft (1 m) |
| Wire stripping length | 0.3 in (8 mm) |
| Auxiliary connection terminal | pre-wired 0...0.001 in² (0...0.8 mm²) AWG 18)stranded copper |
| Response time | < 50 ms |
| Range | ComPact |
| Category | US10DE201136 |
| Impulse duration | >= 20 ms |
| Device short name | MX |
| Device application | Control |
| Operating threshold | 0.7 Un opening |
MPN
LV426861
