Schneider Electric LV426864
MPNLV426864
Active

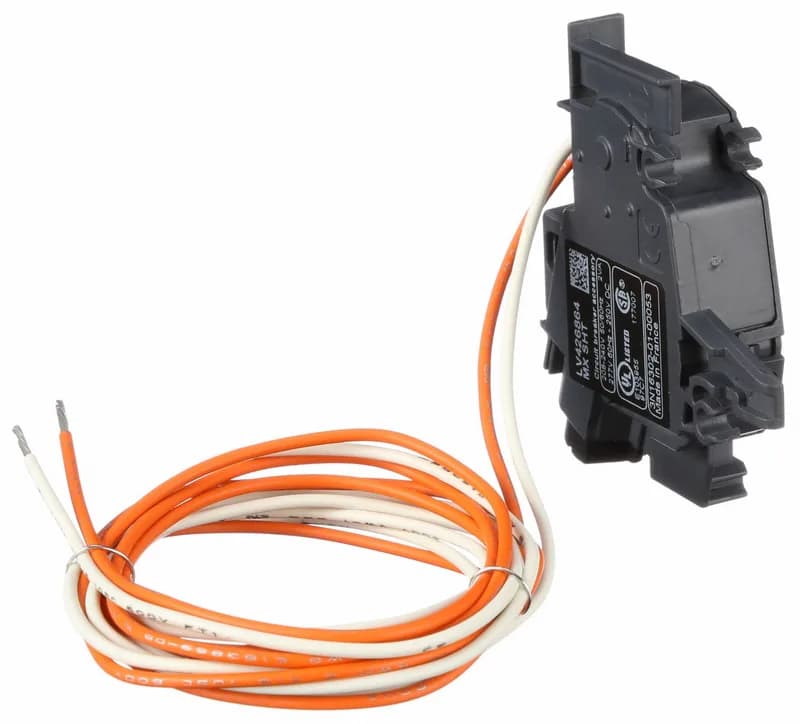

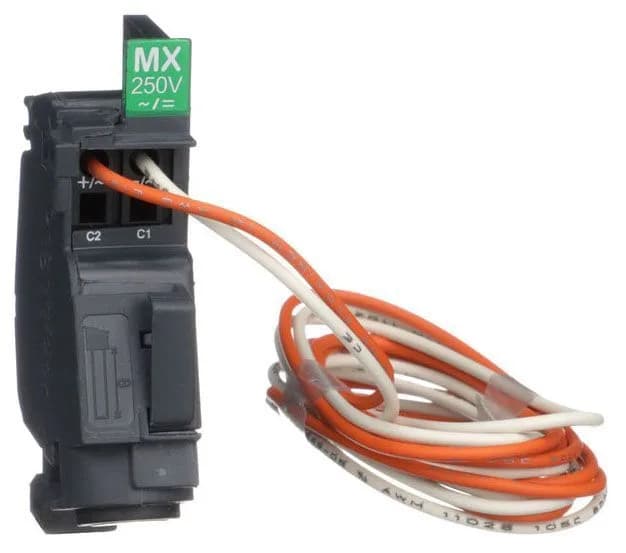

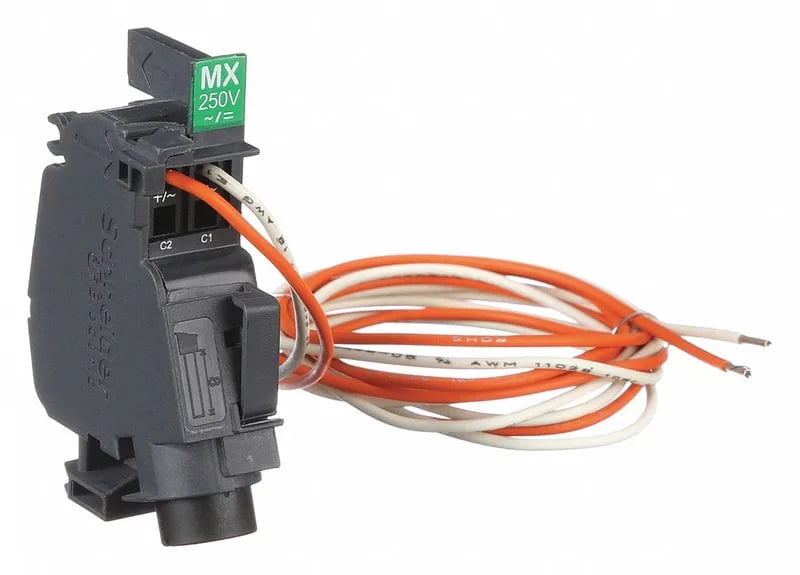

SQUARE D Prewired Shunt Trip: Prewired Shunt Trip, PowerPact B and Compact NSXm Circuit Breaker
$354.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Range of product | ComPacT NSXm |
| Control signal type | Impulse Maintained |
| Voltage release type | Opening coil Shunt trip release |
| Product or component type | Voltage release |
| Coil voltage | 220...240 V AC 50 Hz 208...240 V AC 60 Hz 277 V AC 60 Hz 250 V DC |
| Cable length | 3.3 ft (1 m) |
| Wire stripping length | 0.3 in (8 mm) |
| Auxiliary connection terminal | pre-wired 0...0.001 in² (0...0.8 mm²) AWG 18)stranded copper |
| Response time | < 50 ms |
| Range | ComPact |
| Category | US10DE201136 |
| Impulse duration | >= 20 ms |
| Device short name | MX |
| Device application | Control |
| Operating threshold | 0.7 Un opening |
MPN
LV426864
