Schneider Electric LV426952
MPNLV426952
Obsolete

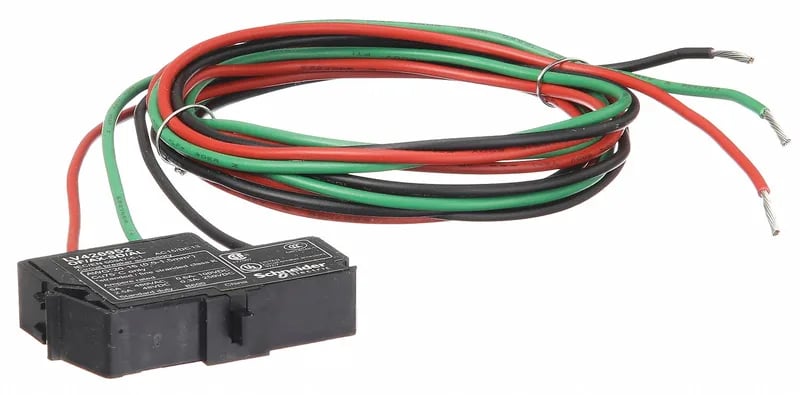

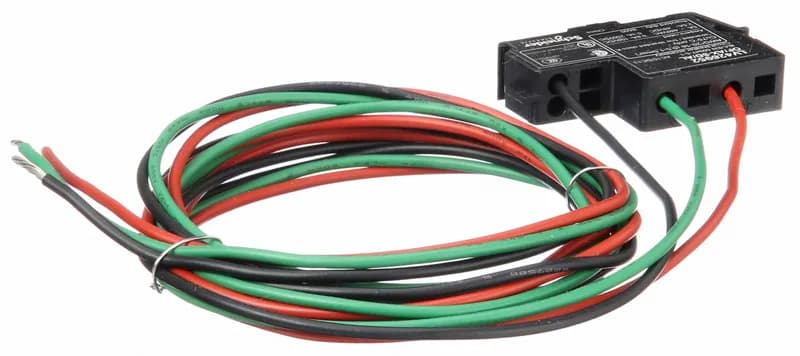

SQUARE D Prewired Auxiliary Switch: Prewired Auxiliary Switch, PowerPact(R) B Circuit Breakers
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Fault type | Overload Short-circuit |
| Auxiliary contacts type | Standard |
| Product or component type | Auxiliary contact |
| Breaking capacity | AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-12: 5 A at 110...127 V AC 50/60 Hz AC-12: 5 A at 220/240 V AC 50/60 Hz AC-12: 5 A at 380/440 V AC 50/60 Hz AC-12: 5 A at 660/690 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz AC-15: 4 A at 110...127 V AC 50/60 Hz AC-15: 3 A at 220/240 V AC 50/60 Hz AC-15: 2.5 A at 380/440 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz DC-12: 5 A at 24 V DC 50/60 Hz DC-12: 2.5 A at 48 V DC 50/60 Hz DC-12: 0.6 A at 110 V DC 50/60 Hz DC-12: 0.3 A at 250 V DC 50/60 Hz DC-13: 2.5 A at 24 V DC 50/60 Hz DC-13: 1.2 A at 48 V DC DC-13: 0.35 A at 110 V DC DC-13: 0.05 A at 250 V DC DC-14: 1 A at 24 V DC DC-14: 0.2 A at 48 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.03 A at 250 V DC |
| [Ith] conventional free air thermal current | 5 A |
| Mounting mode | Clip-on |
| Wire stripping length | 0.3 in (8 mm) for front connection |
| Auxiliary connection terminal | pre-wired 0.001 in² (0.8 mm²) AWG 18)stranded copper |
| Category | US10DE201136 |
| Minimum load | 2 mA 17 V DC |
| Local signalling | Trip indicator for relay trip indicator |
| Device short name | SD |
| Device application | Breaker status monitoring |
| Signal contacts composition | 1 NO/NC |
MPN
LV426952
