Schneider Electric LV426975
MPNLV426975
Obsolete

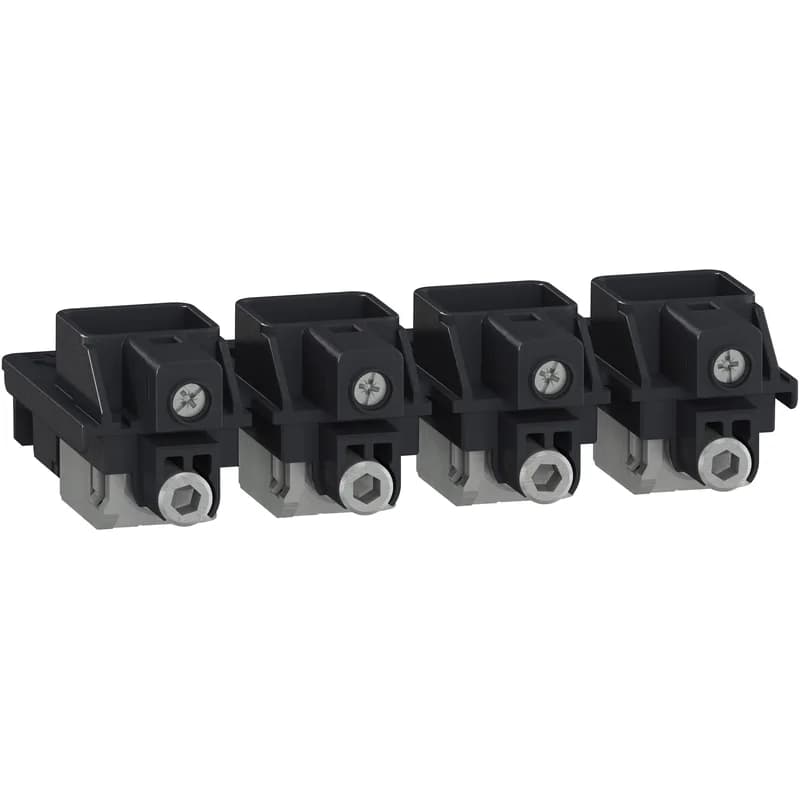

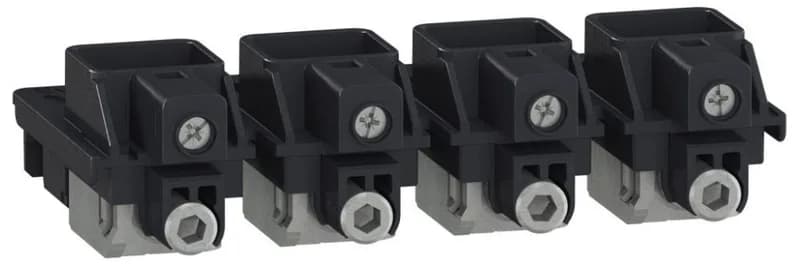

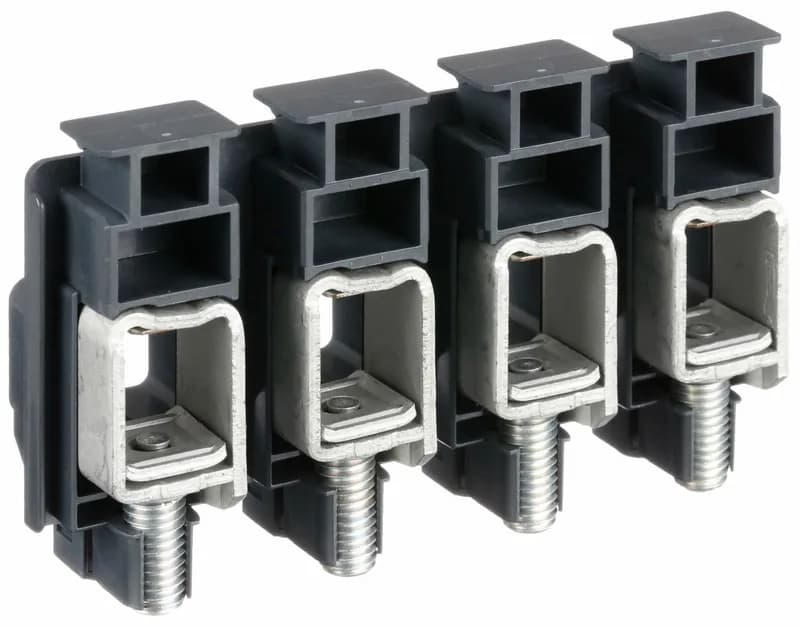

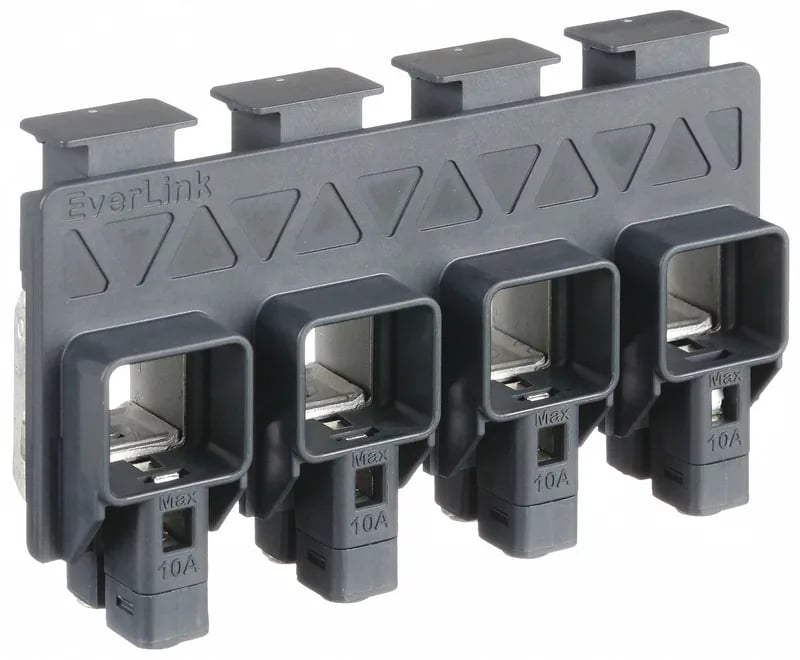

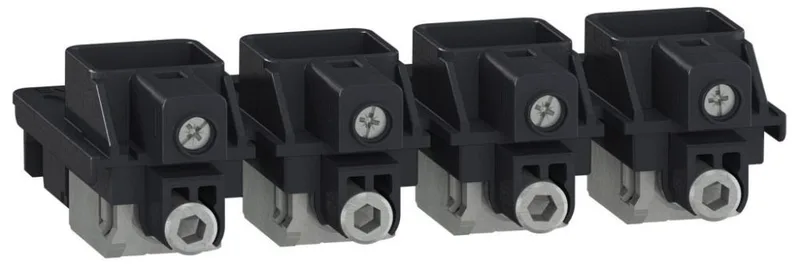

SQUARE D EverLink Lug Kit: EverLink Lug Kit, Powerpact(R) B Circuit Breakers, 4 Poles
$109.59 – $189.81Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Mechanical lug |
| Accessory (Separate part type) | Connection kit |
| Line rated current | 15...125 A copper 15...100 A aluminium |
| Poles description | 4P |
| Conductor material | Steel |
| Control wire terminal | 10 A 0.0008...0.009 in² (0.5...6 mm²) AWG 20...AWG 10), stranded or fine stranded 10 A 0.002...0.009 in² (1.5...6 mm²) AWG 20...AWG 10), rigid |
| Location of connection | Downstream Upstream |
| Connections - terminals | Screw terminal - 1 0.004...0.1 in² (2.5...95 mm²) AWG 14...AWG 3/0) - solid Screw terminal 0.004...0.1 in² (2.5...95 mm²) AWG 14...AWG 3/0) - stranded Screw terminal 0.004...0.1 in² (2.5...70 mm²) AWG 6...AWG 2/0) - fine stranded |
| Category | US10DE201136 |
| Quantity per set | Set of 1 |
MPN
LV426975
