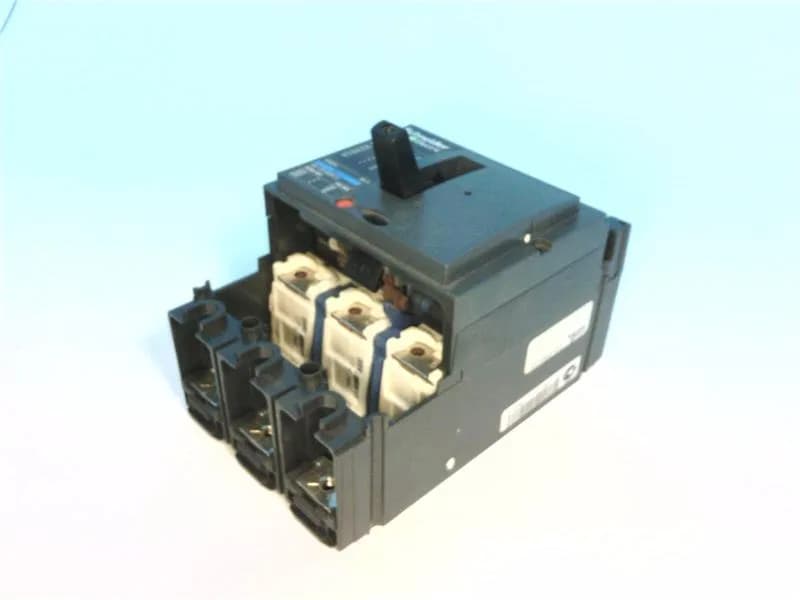

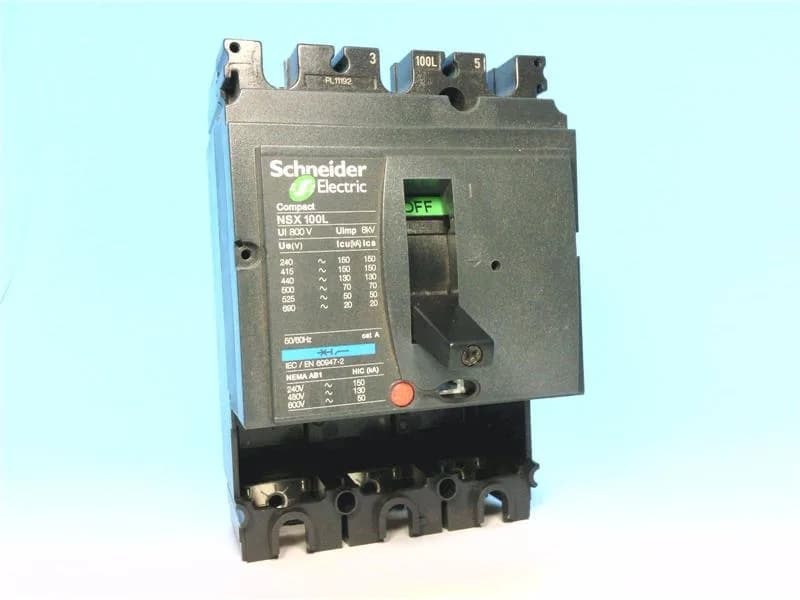

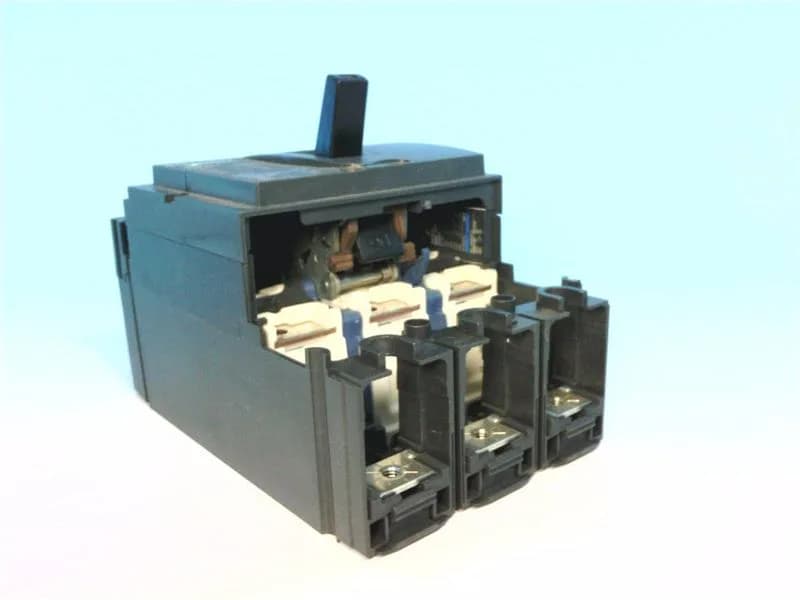

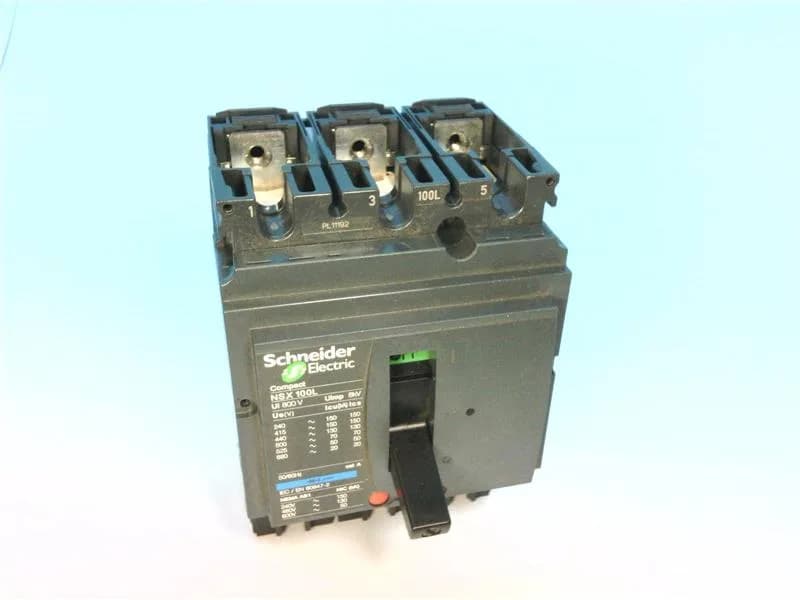

Schneider Electric LV429005

Schneider LV429005 ComPact NSX100L MCCB, 100 A, 130 kA IC

MPNLV429005
Obsolete

Schneider LV429005 Molded Case Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.

$603.57Ref. price · indicative, final on quote
Schneider Electric LV429005 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LV429005 key specifications
ParameterValue
Control typeToggle
Network typeAC
Protection typeWithout protection
Range of productComPact NSX100...250
Product or component typeBasic frame
Voltage800 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage8 kVIEC 60947-2
Line rated current100 A 104 °F (40 °C)
[Ics] rated service short-circuit breaking capacity130 kA 440 V AC 50/60 Hz IEC 60947-2 150 kA 220/240 V AC 50/60 Hz IEC 60947-2 150 kA 380/415 V AC 50/60 Hz IEC 60947-2 20 kA 660/690 V AC 50/60 Hz IEC 60947-2 50 kA 525 V AC 50/60 Hz IEC 60947-2 70 kA 500 V AC 50/60 Hz IEC 60947-2
[Icu] rated ultimate short-circuit breaking capacity130 kA Icu 440 V AC 50/60 Hz IEC 60947-2 150 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 150 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 20 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 50 kA Icu 525 V AC 50/60 Hz IEC 60947-2 70 kA Icu 500 V AC 50/60 Hz IEC 60947-2
Network frequency50/60 Hz

All specifications

LV429005 additional specifications
ParameterValue
Poles3P
Utilisation categoryCategory A
IK degree of protectionIK07 conforming to IEC 62262
IP degree of protectionIP40 conforming to IEC 60529
Mounting modeFixed
Mounting supportBackplate
Connection pitch1.4 in (35 mm)
Upside connectionFront
Downside connectionFront
Pollution degree3 IEC 60664-1
Depth3.4 in (86 mm)
Width4.1 in (105 mm)
Height6.3 in (161 mm)
Electrical durability10000 cycles 690 V AC 50/60 Hz In IEC 60947-2 20000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2 30000 cycles 440 V AC 50/60 Hz In IEC 60947-2 50000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2
Mechanical durability50000 cycles IEC 60947-2
StandardsEN/IEC 60947-2 UL 508
RangeComPact
CategoryUS10DE201101
Device short nameCompact NSX100L
Safety categoryL 150 kA 415 V AC
Device applicationDistribution
Circuit breaker nameCompact NSX100L
Suitability for isolationYes EN/IEC 60947-2
Ambient air temperature for storage-58...185 °F (-50...85 °C)
Ambient air temperature for operation-13...158 °F (-25...70 °C)

Product details

Overview

The LV429005 is a Schneider ComPact NSX100L basic frame MCCB, rated 100 A continuous with a 130 kA interrupting capacity at 415 V AC across three poles.

Sizing and selection

The 130 kA IC at 415 V AC suits high-fault-capacity distribution panels; the 100 A frame covers feeder or main breaker duty in 3-phase systems. Compared to the BDA34110Y, the LV429005 delivers 130 kA IC versus 18 kA, but the BDA34110Y offers a 110 A rating and 10 kA DC breaking capacity — pick the LV429005 when AC fault levels exceed 18 kA and DC breaking is not required.
