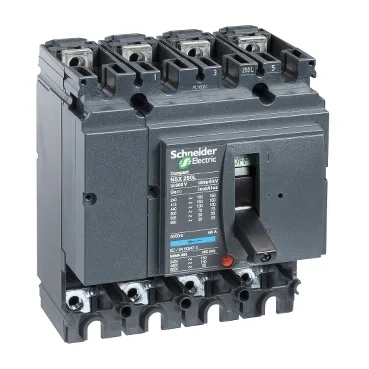

Circuit breaker basic frame, ComPact NSX100L, 150kA at 415VAC 50/60 Hz, 100A, without trip unit, 4 poles
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Protection type | Without protection |
| Range of product | ComPact NSX100...250 |
| Product or component type | Basic frame |
| Voltage | 800 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kVIEC 60947-2 |
| Line rated current | 100 A 104 °F (40 °C) |
| [Ics] rated service short-circuit breaking capacity | 130 kA 440 V AC 50/60 Hz IEC 60947-2 150 kA 220/240 V AC 50/60 Hz IEC 60947-2 150 kA 380/415 V AC 50/60 Hz IEC 60947-2 20 kA 660/690 V AC 50/60 Hz IEC 60947-2 50 kA 525 V AC 50/60 Hz IEC 60947-2 70 kA 500 V AC 50/60 Hz IEC 60947-2 |
| [Icu] rated ultimate short-circuit breaking capacity | 130 kA Icu 440 V AC 50/60 Hz IEC 60947-2 150 kA Icu 220/240 V AC 50/60 Hz IEC 60947-2 150 kA Icu 380/415 V AC 50/60 Hz IEC 60947-2 20 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2 50 kA Icu 525 V AC 50/60 Hz IEC 60947-2 70 kA Icu 500 V AC 50/60 Hz IEC 60947-2 |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 4P |
| Utilisation category | Category A |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Connection pitch | 1.4 in (35 mm) |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 IEC 60664-1 |
| Depth | 3.4 in (86 mm) |
| Width | 5.5 in (140 mm) |
| Height | 6.3 in (161 mm) |
| Electrical durability | 10000 cycles 690 V AC 50/60 Hz In IEC 60947-2 20000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-2 30000 cycles 440 V AC 50/60 Hz In IEC 60947-2 50000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-2 |
| Mechanical durability | 50000 cycles IEC 60947-2 |
| Standards | EN/IEC 60947-2 UL 508 |
| Range | ComPact |
| Category | US10DE201101 |
| Neutral position | Left |
| Device short name | Compact NSX100L |
| Safety category | L 150 kA 415 V AC |
| Device application | Distribution |
| Circuit breaker name | Compact NSX100L |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
LV429010
