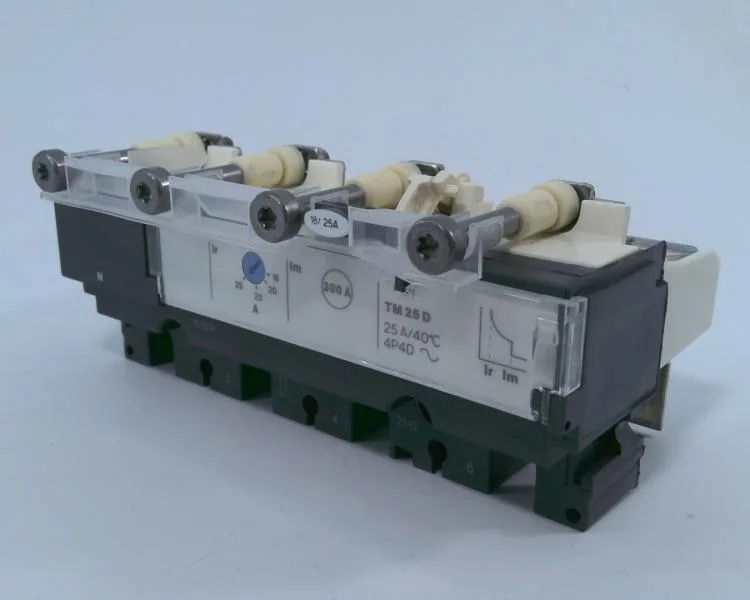

LV429056 - TRIP UNIT by SQUARE D
$168.02Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC DC |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Range of product | ComPact NSX100...250 ComPact NSX100...250 DC |
| Product or component type | Trip unit |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz 750 V DC |
| Trip unit rated current | 25 A 104 °F (40 °C) |
| Network frequency | 50/60 Hz |
| Poles | 4P |
All specifications
| Parameter | Value |
|---|---|
| Protected poles description | 4t |
| Standards | UL 508 EN/IEC 60947-2 |
| Range | ComPact |
| Category | US10DE201103 |
| Trip unit name | TM-D |
| Neutral position | Left |
| Device application | Distribution |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Neutral protection settings | 1 x Ir 4t) |
| Trip unit protection functions | LI |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| [Tr] Long-Time protection delay adjustment range | 120...400 s 1.5 x In 15 s 6 x Ir |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| [Isd] short-time protection pick-up adjustment range | 300 A |
MPN
LV429056
