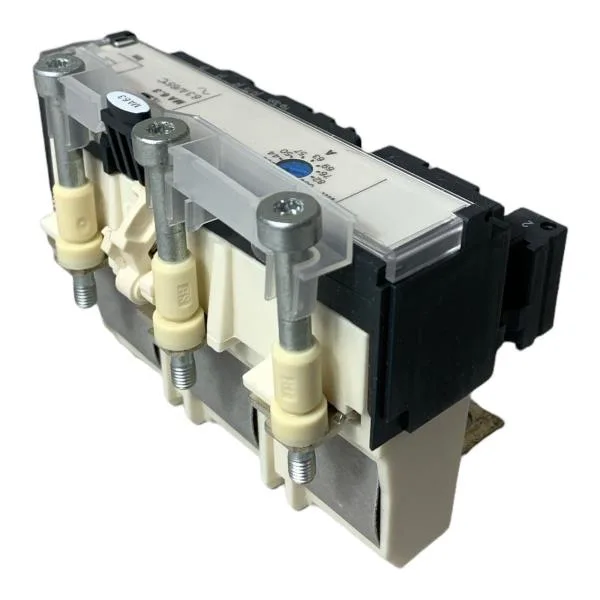

Schneider Electric LV429124
MPNLV429124
Obsolete
SQD LV429124 3P3T MA6.3 TRIP|SQD LV429124 3P3T MA6.3 TRIP
$525.07Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Protection type | I : for short-circuit protection (magnetic) |
| Range of product | ComPact NSX100...250 |
| Product or component type | Trip unit |
| Instantaneous protection pick-up adjustment type ii | Adjustable 9 settings |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Trip unit rated current | 6.3 A 149 °F (65 °C) |
| Network frequency | 50/60 Hz |
| Poles | 3P |
| Protected poles description | 3t |
| Standards | UL 508 EN/IEC 60947-2 |
| Range | ComPact |
All specifications
| Parameter | Value |
|---|---|
| Category | US10DE201103 |
| Trip unit name | MA |
| Device application | Motor |
| Trip unit technology | Magnetic |
| Earth-leakage protection | Without |
| Trip unit protection functions | I |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| [Ii] instantaneous protection pick-up adjustment range | 6...14 x In |
MPN
LV429124
