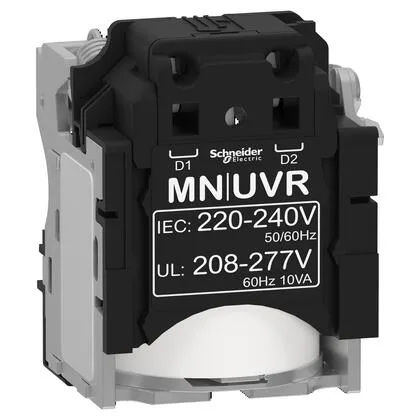

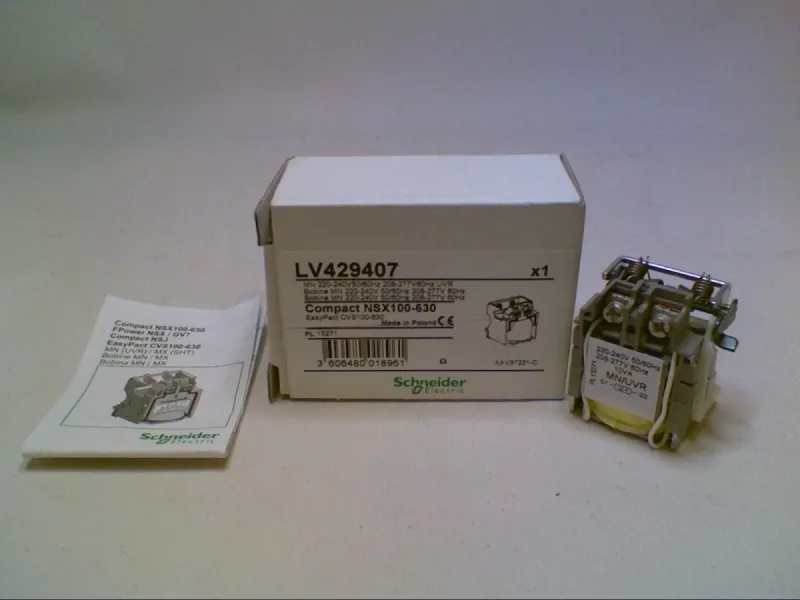

Schneider Electric LV429407
MPNLV429407
Active
CB UVR 220-240V 50/60HZ 208-277V 60HZ|CB UVR 220-240V 50/60HZ 208-277V 60HZ
$93.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | ComPact NSX100...250 ComPacT NSX100...250 ComPact NSX400...630 ComPacT NSX400...630 ComPact NSX100...250 DC ComPacT NSX100...250 DC ComPact NSX100...250 DC PV ComPacT NSX100...250 DC PV ComPact NSX400...630 DC ComPacT NSX400...630 DC ComPact NSX400...630 DC PV ComPacT NSX400...630 DC PV |
| Voltage release type | Opening coil Undervoltage release |
| Product or component type | Voltage release |
| Coil voltage | 220...240 V AC 50/60 Hz 208...277 V AC 60 Hz |
| Supply inrush power | 10 VA |
| Supply holding power | 5 VA |
| Wire stripping length | 0.3 in (7 mm) |
| Auxiliary connection terminal | spring 0.0008...0.002 in² (0.5...1.5 mm²) AWG 20...AWG 16) |
| Response time | 50 ms |
| Range | ComPacT |
| Category | US10NET01081 |
| Device short name | MN |
| Device application | Control |
| Operating threshold | 0.35...0.7 x Un opening 0.85 x Un closing |
MPN
LV429407
