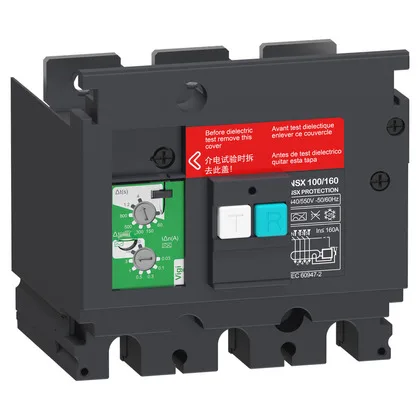

Schneider Electric LV429490
MPNLV429490
Active
EARTH-LEAKAGE ADD-ON PROTECTION MODULE VIGIPACT COMPACT NSX 100|EARTH-LEAKAGE ADD-ON PROTECTION MODULE VIGIPACT COMPACT NSX 100/160 440VAC TO 550VAC 30MA TO 30A 3 POLES
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Range of product | ComPacT NSX100...250 ComPact NSX100...250 |
| Product or component type | Vigi add-on |
| Residual earth-leakage sensitity adjustment type | Adjustable |
| Residual earth-leakage time delay adjustment type | Adjustable |
| [Ue] rated operational voltage | 440...550 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 100 A 160 A |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Electrical shock protection class | Class II |
| Standards | IEC 60947-2 |
| Category | US10DE201103 |
All specifications
| Parameter | Value |
|---|---|
| Device short name | VigiPacT |
| Device application | Wiring |
| Overvoltage category | IV |
| Maximum breaking time | 800 ms |
| Earth-leakage protection | With |
| Earth-leakage sensitivity | 0.03 A class A 0.1 A class A 0.3 A class A 0.5 A class A 1 A class A 3 A class A 10 A class AC 30 A class AC |
| Earth-leakage protection class | Class A Class AC |
| [δt] residual earth-leakage time delay adjustment | 0 ms 60 ms 150 ms 300 ms 500 ms 800 ms 1.2 s 4 s |
MPN
LV429490
