Schneider Electric LV429629
MPNLV429629
Obsolete

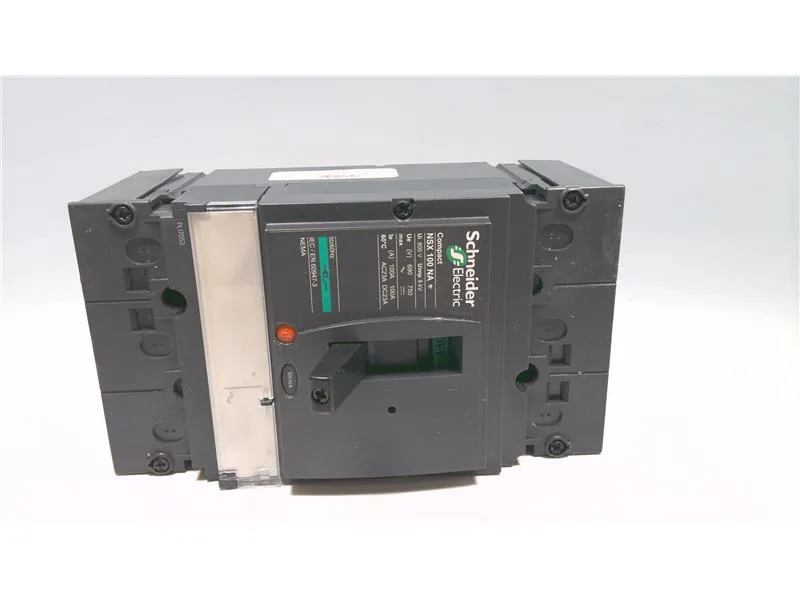

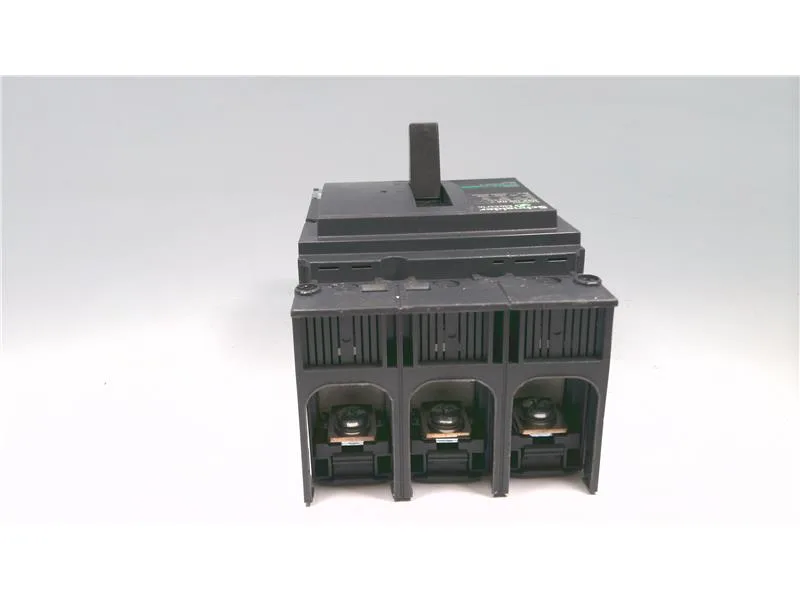

LV429629 - SWITCH DISCONNECTOR by SQUARE D
$130.82Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC DC |
| Product or component type | Switch disconnector |
| Voltage | 800 V AC 50/60 Hz IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-3 750 V DC 3 poles in series IEC 60947-3 500 V DC 2 poles in series IEC 60947-3 250 V DC 1 pole IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kVIEC 60947-3 |
| [Icw] rated short-time withstand current | 0.69 kA 20 s IEC 60947-3 1.8 kA 1 s IEC 60947-3 1.8 kA 3 s IEC 60947-3 |
| [Ie] rated operational current | AC-22A 100 A AC 50/60 Hz 220...690 V AC-23A 100 A AC 50/60 Hz 220...690 V DC-22A 100 A DC 250 V 1 pole DC-22A 100 A DC 500 V 2 poles in series DC-23A 100 A DC 250 V 1 pole DC-23A 100 A DC 500 V 2 poles in series |
| [Icm] rated short-circuit making capacity | 330 kA with upstream protection circuit breaker 2.6 kA switch-disconnector alone |
| [Ith] conventional free air thermal current | 100 A 140 °F (60 °C) |
| Poles description | 3P |
| IK degree of protection | IK07 conforming to IEC 62262 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Connection pitch | 1.4 in (35 mm) |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 IEC 60664-1 |
| Electrical shock protection class | Class II |
| Depth | 3.4 in (86 mm) |
| Width | 4.1 in (105 mm) |
| Height | 6.3 in (161 mm) |
| Electrical durability | AC-22A 10000 cycles 250 V DC In/2 (1 pole) IEC 60947-3 AC-22A 15000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-3 AC-22A 20000 cycles 440 V AC 50/60 Hz In IEC 60947-3 AC-22A 35000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-3 AC-22A 5000 cycles 500 V DC In (2 poles in series) IEC 60947-3 AC-22A 8000 cycles 690 V AC 50/60 Hz In IEC 60947-3 AC-23A 10000 cycles 250 V DC In/2 (1 pole) IEC 60947-3 AC-23A 15000 cycles 690 V AC 50/60 Hz In/2 IEC 60947-3 AC-23A 20000 cycles 440 V AC 50/60 Hz In IEC 60947-3 AC-23A 35000 cycles 440 V AC 50/60 Hz In/2 IEC 60947-3 AC-23A 5000 cycles 500 V DC In (2 poles in series) IEC 60947-3 AC-23A 8000 cycles 690 V AC 50/60 Hz In IEC 60947-3 |
| Mechanical durability | 50000 cycles IEC 60947-3 |
| Standards | EN/IEC 60947-3 |
| Range | ComPact |
| Category | US10DE201101 |
| Visible break | No |
| Device short name | Compact NSX100NA |
| Suitability for isolation | Yes EN 60947-3 Yes IEC 60947-3 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -67...185 °F (-55...85 °C) |
| Ambient air temperature for operation | -31...158 °F (-35...70 °C) |
MPN
LV429629
