Schneider Electric LV431545
MPNLV431545
Obsolete

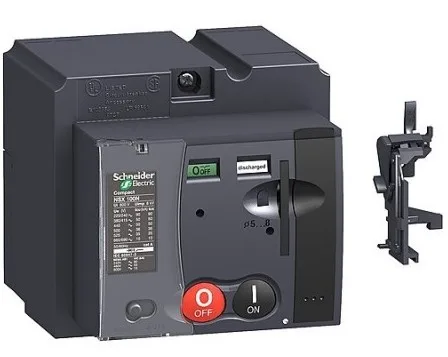

LV431545 - MOTOR OPERATOR by SQUARE D
$384.81Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Control signal type | Maintained Impulse |
| Product or component type | Motor mechanism |
| Coil voltage | 110...130 V DC |
| Circuit breaker frame rated current | 250 A |
| Maximum power consumption in | 500 W - closing 500 W - opening |
| Maximum operating frequency | <= 2 cycles per minute |
| Circuit breaker mounting mode | Fixed |
| Circuit breaker response time | < 700 ms open < 80 ms closed |
| Category | US10NET01081 |
| Device short name | MT250 |
| Device application | Automatic spring charging |
| Provided equipment | SDE adaptor |
| Locking options description | 1 to 3 padlocks Ø 5 to Ø 8 Padlocking in OFF position |
MPN
LV431545
