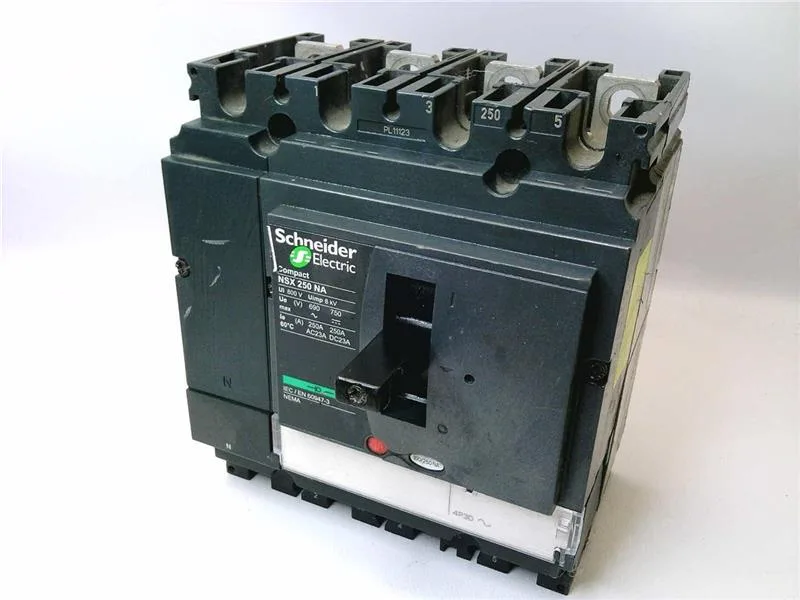

LV431639 - SWITCH DISCONNECTOR by MERLIN GERIN
$640.08Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC DC |
| Product or component type | Switch disconnector |
| Voltage | 800 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 750 V DC 3 poles in series conforming to IEC 60947-3 500 V DC 2 poles in series conforming to IEC 60947-3 250 V DC 1 pole conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Icw] rated short-time withstand current | 1.35 kA during 20 s conforming to IEC 60947-3 3.5 kA during 1 s conforming to IEC 60947-3 3.5 kA during 3 s conforming to IEC 60947-3 |
| [Ie] rated operational current | AC-22A: 250 A AC 50/60 Hz 220...690 V AC-23A: 250 A AC 50/60 Hz 220...690 V DC-22A: 250 A DC 250 V 1 pole DC-22A: 250 A DC 500 V 2 poles in series DC-23A: 250 A DC 250 V 1 pole DC-23A: 250 A DC 500 V 2 poles in series |
| [Icm] rated short-circuit making capacity | 330 kA with upstream protection circuit breaker 4.9 kA switch-disconnector alone |
| [Ith] conventional free air thermal current | 250 A at 60 °C |
| Poles description | 4P |
| IK degree of protection | IK07 conforming to IEC 62262 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Connection pitch | 35 mm |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Electrical shock protection class | Class II |
| Depth | 86 mm |
| Width | 140 mm |
| Height | 161 mm |
| Product weight | 2.2 kg |
| Electrical durability | AC-22A: 10000 cycles 250 V DC In/2 (1 pole) conforming to IEC 60947-3 AC-22A: 5000 cycles 500 V DC In (2 poles in series) conforming to IEC 60947-3 AC-23A: 10000 cycles 250 V DC In/2 (1 pole) conforming to IEC 60947-3 AC-23A: 5000 cycles 500 V DC In (2 poles in series) conforming to IEC 60947-3 AC-22A: 15000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-22A: 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-22A: 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-22A: 7500 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 15000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3 AC-23A: 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-3 AC-23A: 7500 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-3 |
| Mechanical durability | 20000 cycles conforming to IEC 60947-3 |
| Standards | EN/IEC 60947-3 |
| Range | ComPact |
| Visible break | No |
| Device short name | Compact NSX250NA |
| Suitability for isolation | Yes conforming to EN 60947-3 Yes conforming to IEC 60947-3 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -55...85 °C |
| Ambient air temperature for operation | -35...70 °C |
MPN
LV431639
