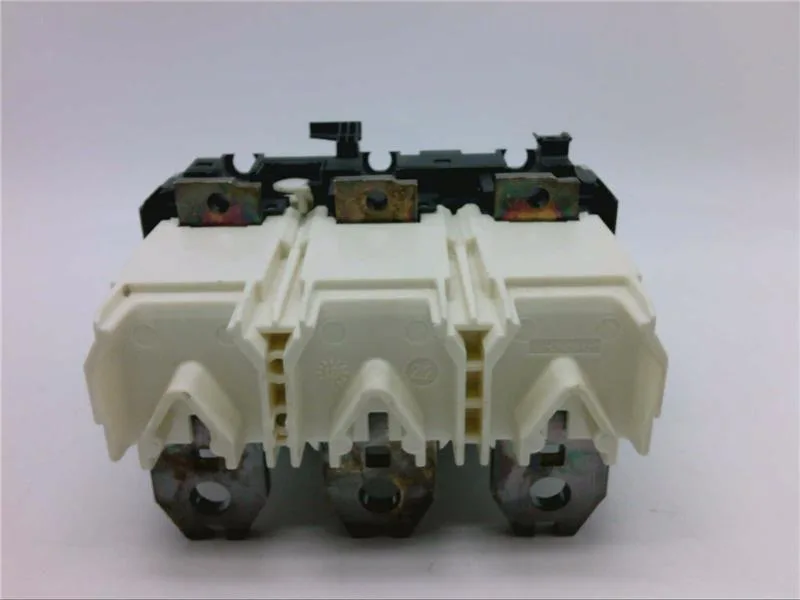

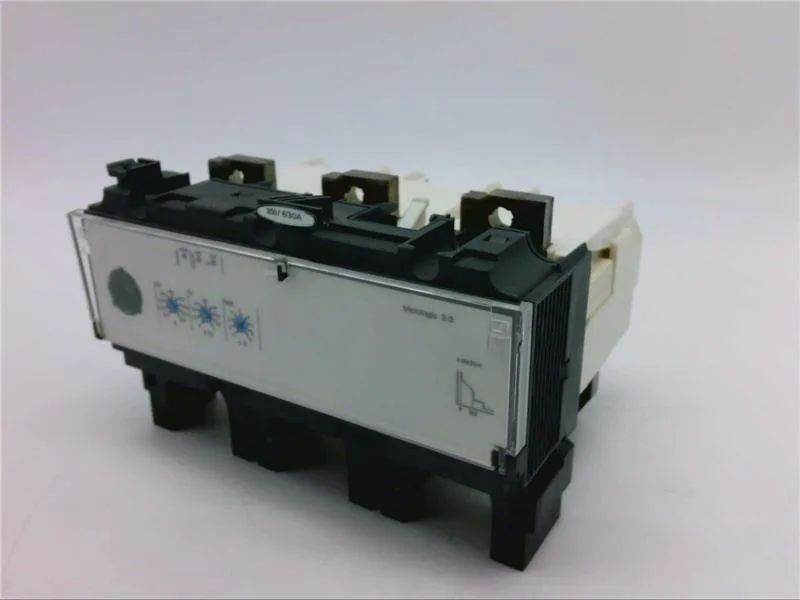

Schneider Electric LV432080
MPNLV432080
Obsolete

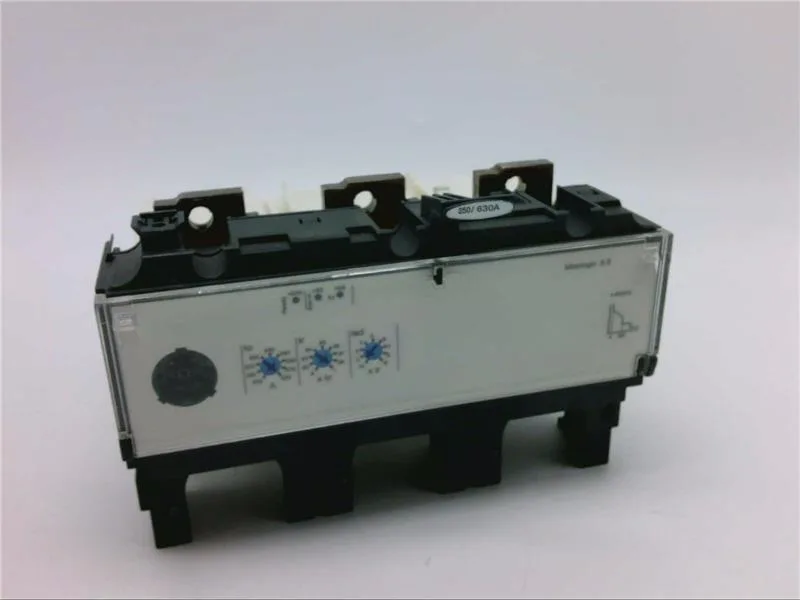

3P3T MICROLOGIC 2.3 630A TRIP UNIT FOR|3P3T MICROLOGIC 2.3 630A TRIP UNIT FOR
$815.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Protection type | L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection |
| Range of product | ComPact NSX400...630 |
| Product or component type | Trip unit |
| Long-time protection delay adjustment type tr | Fixed |
| Short-time protection delay adjustment type tsd | Fixed |
| Short-time protection pick-up adjustment type isd | Adjustable 9 settings |
| Instantaneous protection pick-up adjustment type ii | Fixed |
| Long-time pick-up adjustment type ir (thermal protection) | Adjustable 9 settings |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Trip unit rated current | 630 A 104 °F (40 °C) |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 3P |
| Protected poles description | 3t |
| Standards | UL 508 EN/IEC 60947-2 |
| Range | ComPact |
| Category | US10DE201101 |
| Thermal memory | 20 minutes before and after tripping |
| Trip unit name | MicroLogic 2.3 |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Device application | Distribution |
| Trip unit technology | Electronic |
| Earth-leakage protection | Without |
| Trip unit protection functions | LSoI |
| Zone selective interlocking ZSI | Without |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
| [Tr] Long-Time protection delay adjustment range | 11 s 7.2 x Ir 16 s 6 x Ir 400 s 1.5 x Ir |
| [Ir] long-time protection pick-up adjustment range | 250...630 A |
| [tsd] short-time protection delay adjustment range | 0.02 s |
| [Isd] short-time protection pick-up adjustment range | 1.5...10 x Ir |
| [Ii] instantaneous protection pick-up adjustment range | 6900 A |
MPN
LV432080
