Schneider Electric LV432454
MPNLV432454
Obsolete

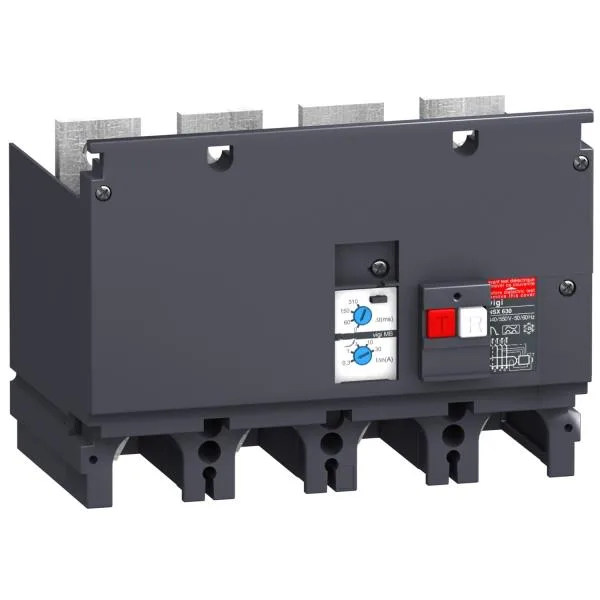

LV432454 - EARTH-LEAKAGE ADD-ON PROTECTION MODULE by SQUARE D
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Range of product | ComPact NSX400...630 |
| Product or component type | Vigi add-on |
| Residual earth-leakage sensitity adjustment type | Adjustable 5 settings |
| Residual earth-leakage time delay adjustment type | Adjustable 4 settings |
| [Ue] rated operational voltage | 440...550 V AC 50/60 Hz conforming to IEC 60947-2 |
| Current | 400 A 630 A |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| Electrical shock protection class | Class II |
| Standards | IEC 60947-2 |
| Range | ComPact |
All specifications
| Parameter | Value |
|---|---|
| Device application | Wiring |
| Overvoltage category | Class II |
| Maximum breaking time | 800 ms |
| Earth-leakage protection | With |
| Earth-leakage sensitivity | 0.3 A 1 A 3 A 10 A 30 A |
| Earth-leakage protection class | Class A |
| Earth-leakage add-on module name | MB |
| [δt] residual earth-leakage time delay adjustment | 60 ms 150 ms 310 ms 0 ms |
MPN
LV432454
