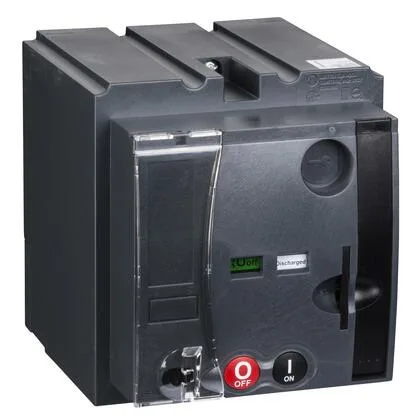

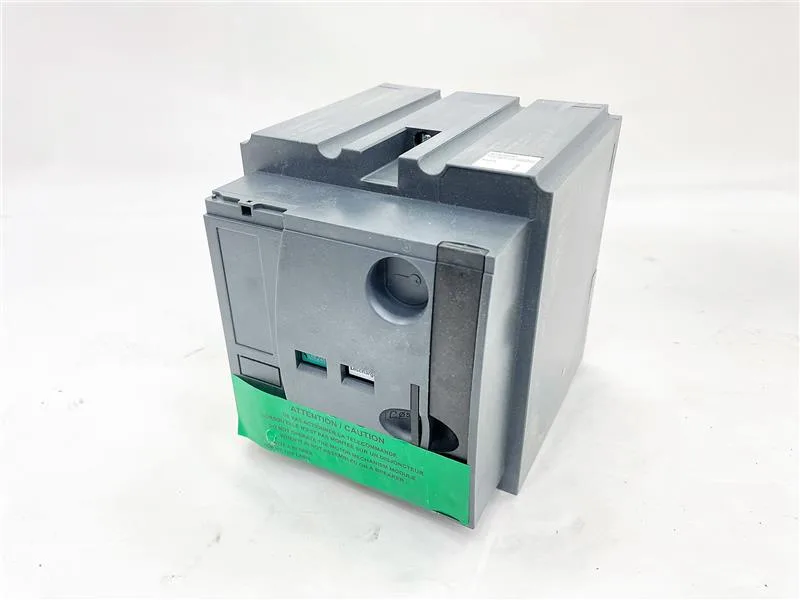

Schneider Electric LV432640
MPNLV432640
Active
CB MOTOR OPERATOR 110-130V AC 50/60HZ|CB MOTOR OPERATOR 110-130V AC 50/60HZ
$570.23Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Control signal type | Impulse Maintained |
| Product or component type | Motor mechanism |
| Coil voltage | 110...130 V AC 50/60 Hz |
| Circuit breaker frame rated current | 630 A 400 A |
| Maximum power consumption in | 500 VA closing 500 VA opening |
| Maximum operating frequency | 4 per minute |
| Circuit breaker mounting mode | Fixed |
| Circuit breaker response time | < 700 ms open < 80 ms closed |
| Category | US10NET01081 |
| Device short name | MT400/630 |
| Device application | Automatic spring charging |
| Locking options description | Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8 |
MPN
LV432640
