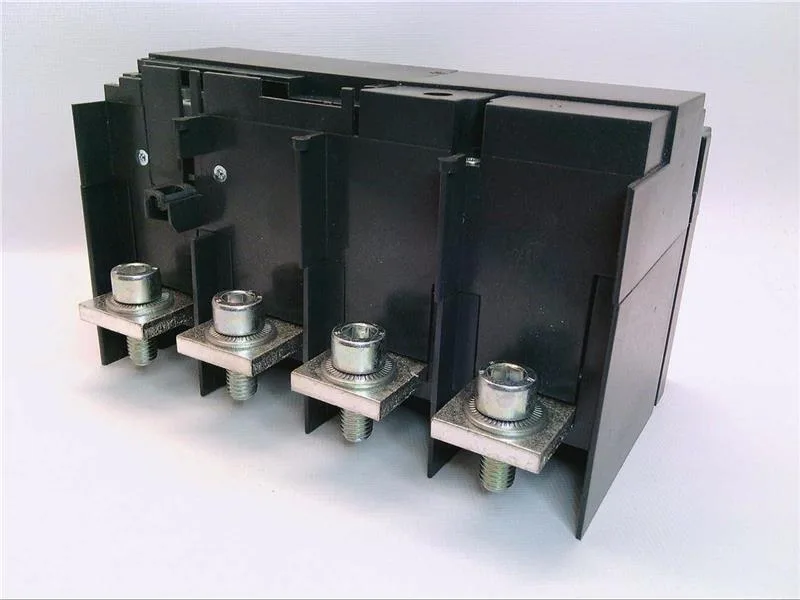

Schneider Electric LV432862
MPNLV432862
Obsolete
LV432862 by MERLIN GERIN
$513.08Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product or component type | Current transformer |
| [Ue] rated operational voltage | 530 V |
| Current | 600 A |
| Current transformer ratio | 600/5 A |
| Power consumption in | 2 VA |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| IK degree of protection | IK04 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Auxiliary connection terminal | Cable connector 2.5 mm² |
| Electrical shock protection class | Class II |
| Accuracy | Class 0.5 |
| Device short name | CT module and voltage output |
| Device application | Control |
MPN
LV432862
