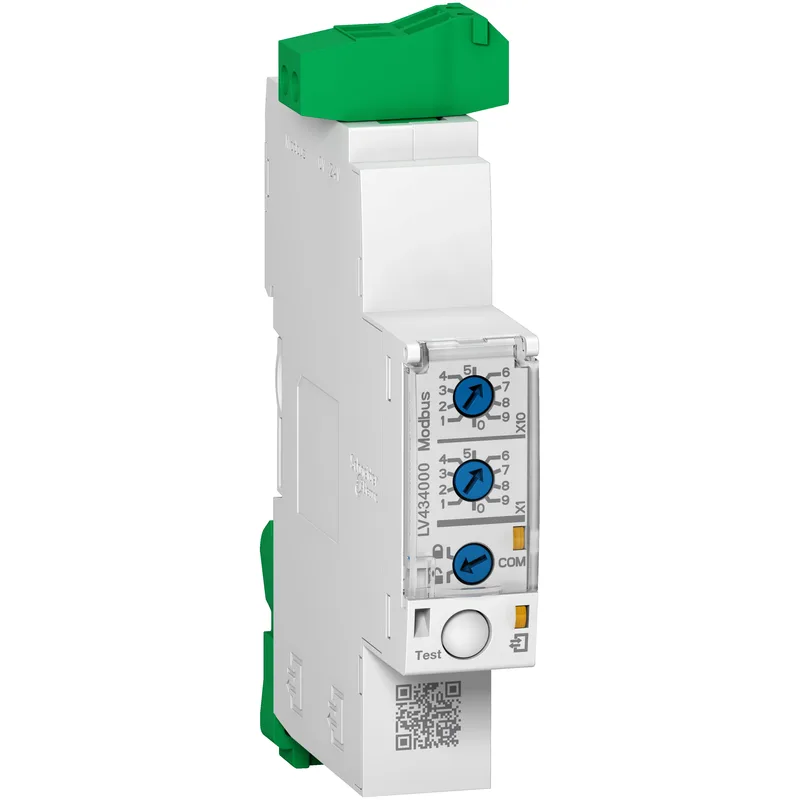

Schneider Electric LV434000
MPNLV434000
Active
Square D LV434000 Circuit Breaker Modbus Sl|Square D LV434000 Circuit Breaker Modbus Sl
$106.68Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Memory type | EEPROM data storage |
| Range of product | ComPact NSX100...250 ComPact NSX400...630 ComPact NS630b...1600 ComPact NS1600b...3200 |
| Product or component type | Interface module |
| Communication network type | Universal Logic Plug 2-port RJ45 Modbus, Modbus Serial line slave 9.6...38.4 kbauds 1 RJ45 |
| Input voltage | 24 V DC - 20...10 % |
| Output voltage | 24 V DC |
| Output current | 3 A |
| Current consumption | 30 mA 24 V DC room temperature |
| Power consumption in | 1.635 W |
| Vibration frequency | 5...8.4 Hz EN/IEC 60068-2 |
| IP degree of protection | Connectors IP20 Other parts IP30 |
| Mounting mode | By clips |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | 35 mm DIN rail |
| Connections - terminals | RJ45 connector Screw type terminals |
| Pollution degree | 3 |
| Shock resistance | +/- 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5...85 % 131 °F (55 °C) without condensation |
| Depth | 2.9 in (73 mm) |
| Width | 0.7 in (18 mm) |
| Height | 4.3 in (109 mm) |
| Standards | CISPR 22 UL 61010 UL 60950 CISPR 24 CISPR 11 IEC 60950 IACS E10 |
| Category | US10DE201103 |
| Accuracy | Class 2 power supply |
| Flame retardance | V0 conforming to UL 94 |
| Device short name | IFM |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -4...158 °F (-20...70 °C) |
MPN
LV434000
