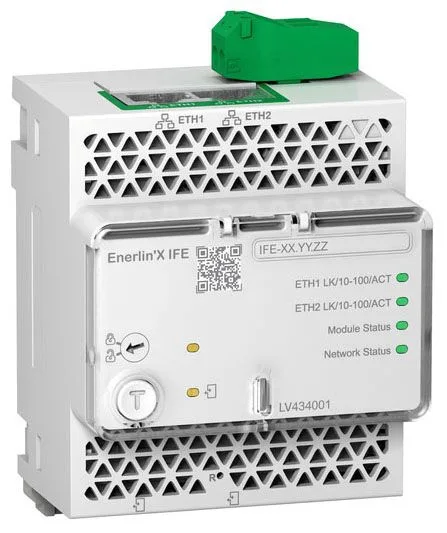

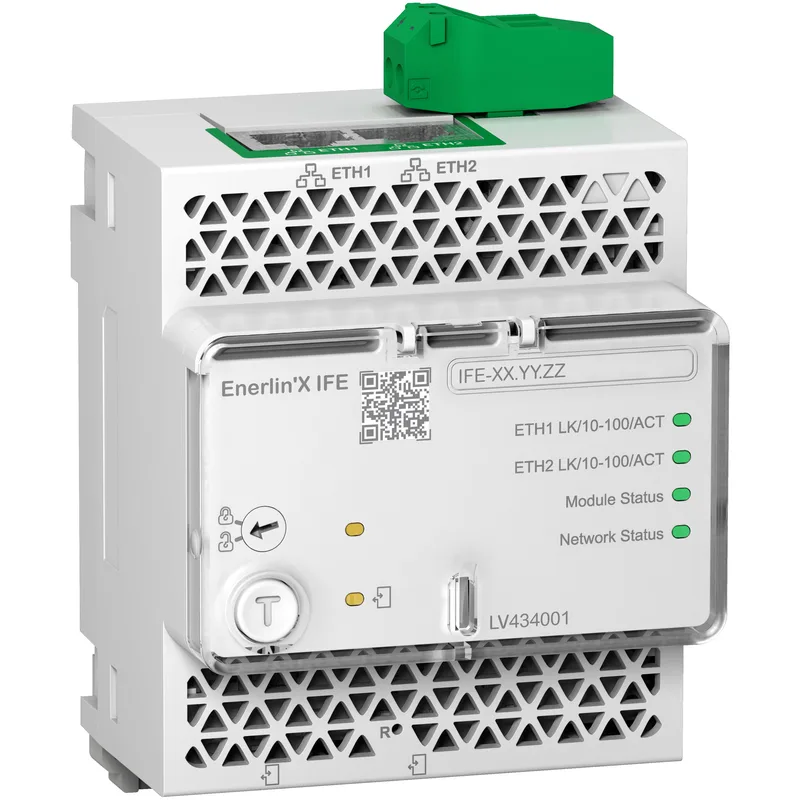

Schneider Electric LV434001
MPNLV434001
Active
CIRCUIT BREAKER ETHERNET INTERFACE|CIRCUIT BREAKER ETHERNET INTERFACE
$1,003.83 – $1,498.52Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | By software |
| Range of product | ComPact NSX100...250 ComPact NSX400...630 ComPact NS630b...1600 ComPact NS1600b...3200 |
| Product or component type | Interface module |
| Communication network type | Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45 Universal Logic Plug 2-port RJ45 |
| Supply voltage | 24 V DC - 20...10 % |
| Current consumption | 120 mA |
| Maximum supply current | 3 A |
| Vibration frequency | 5...8.4 Hz |
| IP degree of protection | Connectors IP2X Other parts IP3x Front panel IP4X |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Connections - terminals | RJ45 connector |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Shock resistance | 1000 m/s² |
| Relative humidity | 5...85 % |
| Depth | 2.8 in (71 mm) |
| Width | 2.8 in (72 mm) |
| Height | 4.1 in (105 mm) |
| Standards | UL 60950 UL 508 IEC 60947-6-2 IEC 60950 |
| Category | US10DE201103 |
| Web server | Embedded HTTP server |
| Flame retardance | V0 conforming to UL 94 V0 conforming to IEC 60947-1 V0 conforming to IEC 60695-2-11 |
| Device short name | IFE |
| Accessory (separate part category) | Spare part Compact NS630b...1600 Spare part Compact NS1600b...3200 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -4...158 °F (-20...70 °C) |
MPN
LV434001
