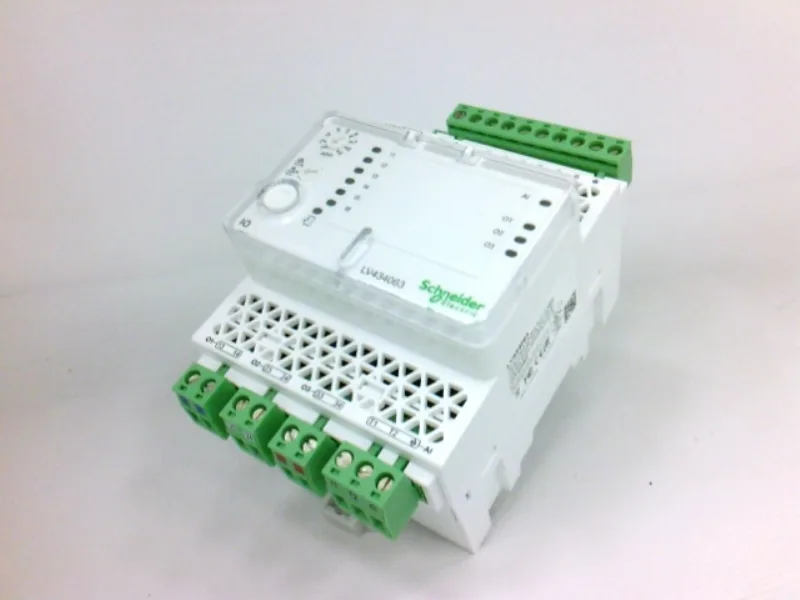

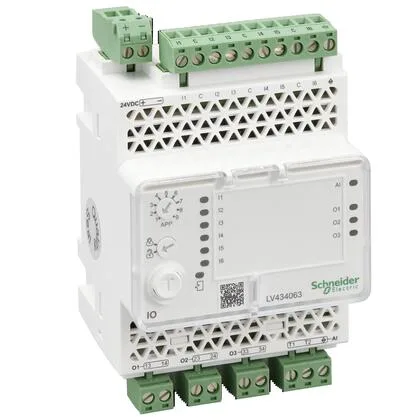

Schneider Electric LV434063
MPNLV434063
Active
CIRCUIT BREAKER I/O MODULE|CIRCUIT BREAKER I/O MODULE
$215.90Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Digital state 1 19.8...25.2 V - DC - 6.1...8.8 mA Digital state 0 0...19.8 V - DC - 0 mA |
| Output signal | Digital 250 V - AC - 5 A |
| Control type | By software |
| Product or component type | I/O module |
| Communication network type | Universal Logic Plug 2 RJ45 connectors |
| Supply voltage | 24 V DC - 20...10 % |
| Current consumption | 165 mA |
| Vibration frequency | 5...8.4 Hz |
| I/O channels | 6 digital 1 analog |
| IP degree of protection | IP2X connectors: IP4X front panel: IP3x other parts: |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Cable length | 32.8 ft (10 m) |
| Connections - terminals | Screw terminal block |
| Pollution degree | 3 |
| Shock resistance | 1000 m/s² |
| Relative humidity | 5...85 % |
| Depth | 2.8 in (70.6 mm) |
| Width | 2.8 in (71.7 mm) |
| Height | 4.6 in (116 mm) |
| Standards | IEC 60947-6-2 UL 60950 IEC 60950 UL 508 |
| Category | US10DE201103 |
| Time delay | 0...20 s |
| Flame retardance | V0 conforming to UL |
| Device short name | I/O |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 Immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3 Surge immunity test conforming to EN/IEC 61000-4-5 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -4...158 °F (-20...70 °C) |
MPN
LV434063
