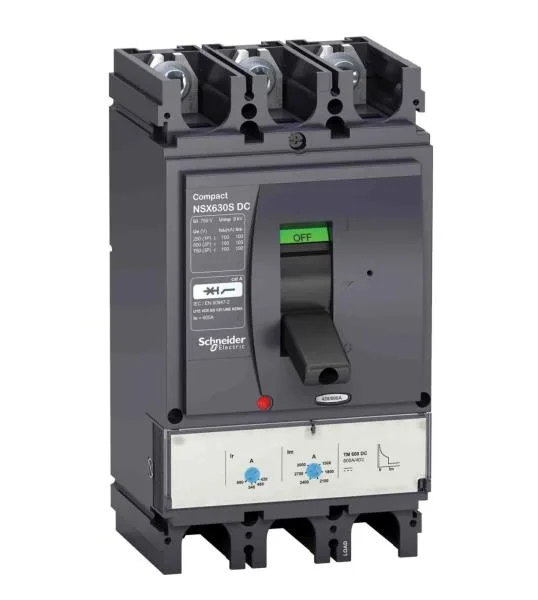

Schneider Electric LV438100
MPNLV438100
Obsolete
LV438100 - LV438100 by SQUARE D
$271.78Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | DC |
| Product or component type | Switch disconnector |
| Voltage | 1000 V DC conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 1000 V DC conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-3 |
| [Icw] rated short-time withstand current | 2.5 kA during 1 s conforming to IEC 60947-3 |
| [Ie] rated operational current | DC-22A: 100 A DC 1000 V |
| [Icm] rated short-circuit making capacity | 2.5 kA switch-disconnector alone |
| [Ith] conventional free air thermal current | 100 A at 65 °C |
| Poles description | 4P |
| Utilisation category | DC-22A |
All specifications
| Parameter | Value |
|---|---|
| IK degree of protection | IK07 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Connection pitch | 35 mm |
| Upside connection | Front |
| Downside connection | Front |
| Pollution degree | 3 conforming to IEC 60947-3 |
| Depth | 186 mm |
| Width | 140 mm |
| Height | 161 mm |
| Electrical durability | 1500 cycles 1000 V DC In conforming to IEC 60947-3 |
| Mechanical durability | 10000 cycles conforming to IEC 60947-3 |
| Standards | EN/IEC 60947-3 |
| Range | ComPact |
| Visible break | No |
| Device short name | Compact NSX100NA DC PV |
| Suitability for isolation | Yes conforming to IEC 60947-3 |
| Contact position indicator | Yes |
MPN
LV438100
