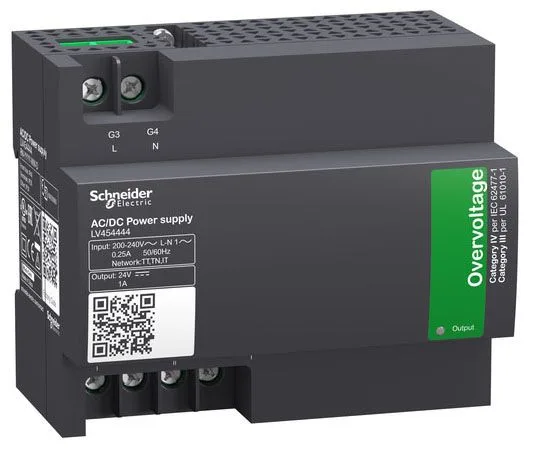

Product Detail|Square D LV454444 Power Supply Module
$222.25 – $645.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Power supply type | Regulated switch mode |
| Output protection type | Against overload, protection technology: manual reset Against overvoltage, protection technology: 30...32 V, manual reset Against short-circuits, protection technology: manual reset Thermal, protection technology: automatic reset |
| Product or component type | External power supply module |
| Accessory (Separate part type) | Control units accessories Trip unit accessories |
| Output voltage | 24 V DC +/-5 % |
| Input voltage limits | 170...264 V AC 47.5...63 Hz |
| Supply voltage | 200...240 V AC 50/60 Hz +10 % -15 % |
| Inrush current | 20 A 2 ms |
| Power supply output current | 1 A |
| Permissible temporary current boost | 1.5 A 200 ms) |
| Rated power in | 24 W |
| Power dissipation in | 4.2 W |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP4X EN/IEC 60529 front face) IP2X EN/IEC 60529 connection terminals) IP3x EN/IEC 60529 housing) |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail |
| Connections - terminals | Screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 Screw type terminals, connection capacity: 1 x 0.2...1 x 4 mm² AWG 24...AWG 12 |
| Relative humidity | 0...95 % during operation 0...95 % in storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Depth | 2.7 in (67.5 mm) |
| Width | 4.3 in (108 mm) |
| Height | 3.5 in (90 mm) |
| Standards | UL 61010-1 IEC 62477-1 |
| Marking | EAC CE UL |
| Category | US10DE201103 |
| Efficiency | 85 % |
| Status LED | 1 LED (Green) output voltage |
| Holding time | >= 20 ms 200...240 V AC |
| Name of test | Electrostatic discharges conforming to EN/IEC 61000-4-2 Induced electromagnetic field conforming to EN/IEC 61000-4-6 Magnetic field conforming to EN 61000-4-8 Primary outage conforming to IEC 61000-4-11 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 Rapid transient conforming to IEC 61000-4-4 Surge conforming to EN/IEC 61000-4-5 Radiated emissions conforming to EN 61000-6-3 Conducted emissions on the power line conforming to EN 61000-6-3 |
| Trip unit name | MicroLogic |
| Compatibility code | CB_EXTERNAL_POWERSUPPLY |
| Device application | Power supply |
| Operating position | Horizontal |
| Dielectric strength | 3000 V between input and ground 3000 V between input and output 1500 V between output and ground |
| Overvoltage category | IV conforming to IEC 62477-1 III conforming to UL 61010-1 |
| Environmental characteristic | EMC conforming to EN/IEC 61000-6-2 EMC conforming to EN/IEC 61000-6-3 Safety conforming to IEC 62477-1 Safety conforming to SELV |
| Ambient air temperature for storage | -58...185 °F (-50...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
