Schneider Electric LV480502
MPNLV480502
Obsolete

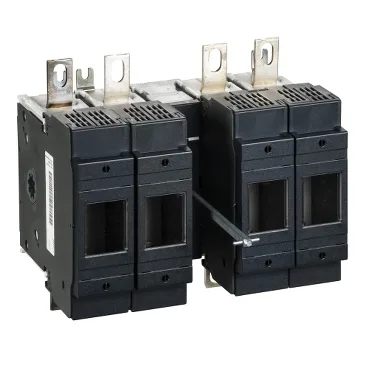

Switch disconnector fuse, FuPact INFD200, 200 A, 4 poles 4F, fuse type DIN 0, front control
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Switch-disconnector-fuse |
| Device application | Protection |
| Parameter | Value |
|---|---|
| Height | 199 mm |
| Width | 219 mm |
| Depth | 149 mm |
| Parameter | Value |
|---|---|
| Poles description | 4P |
| Device short name | INFD200 |
| Standards | EN/IEC 60947-1 EN/IEC 60947-3 |
| Parameter | Value |
|---|---|
| [Ue] rated operational voltage | 690 V AC 50/60 Hz 1000 V AC 50/60 Hz AC-20 1000 V DC DC-20 750 V DC |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz 1000 V DC |
MPN
LV480502
