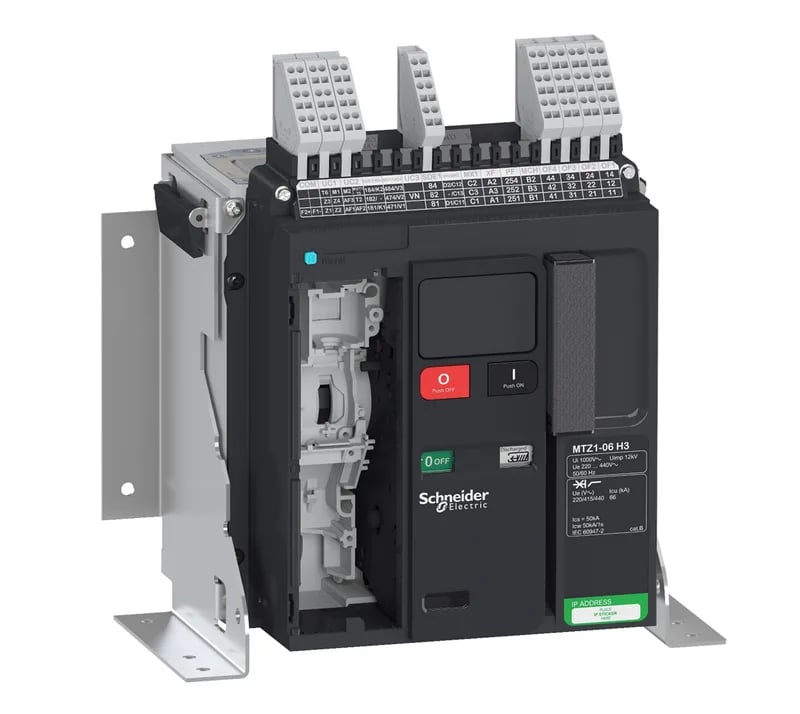

Schneider LV846436 Masterpact Circuit Breaker
MPNLV846436
Active
Circuit Breaker Masterpact
$2,676.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Performance type | H3 66 kA 415 V AC |
| Product or component type | Circuit breaker |
| Voltage | 1000 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| [Icw] rated short-time withstand current | 30 kA 3 s 50 kA 1 s 50 kA 0.5 s |
| Current | 630 A at 40 °C |
| [Ics] rated service breaking capacity | 50 kA at 440 V AC 50/60 Hz 50 kA at 220/415 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 145 kA 220/415 V AC at 50/60 Hz 145 kA 440 V AC at 50/60 Hz |
| [Icu] rated ultimate short-circuit breaking capacity | 66 kA at 220/415 V AC 50/60 Hz 66 kA at 440 V AC 50/60 Hz |
| Power dissipation in | 30 W |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| IP degree of protection | IP30 conforming to EN 60529 |
| Mounting mode | Fixed |
| Mounting support | Rails Base plate |
| Connection pitch | 70 mm |
| Upside connection | Front Rear |
| Downside connection | Front Rear |
| Maximum closing response time | 50 ms |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Operating altitude | 0...2000 m without derating 2000...5000 m with derating |
| Depth | 209 mm |
| Width | 276 mm |
| Height | 301 mm |
| Electrical durability | 6000 cycles 440 V AC 50/60 Hz at In conforming to EN/IEC 60947-2 AC-23A: 6000 cycles 440 V AC 50/60 Hz at In conforming to EN/IEC 60947-3 AC-3: 6000 cycles 440 V AC 50/60 Hz at In conforming to EN/IEC 60947-3 |
| Mechanical durability | 10000 cycles with periodic preventive maintenance |
| Standards | EN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-2 Annex H IEC 61557-12 |
| Range | MasterPacT |
| Control unit | Without control unit |
| Sensor rating | 400 A 630 A |
| Device short name | MTZ1 06 H3 |
| Device application | Power distribution protection |
| Selectivity category | Category B |
| Maximum breaking time | 25 ms |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| Integrated instantaneous protection (DIN in kA peak) | 99...121 kA |
MPN
LV846436
