Schneider Electric LV848277
MPNLV848277
Active

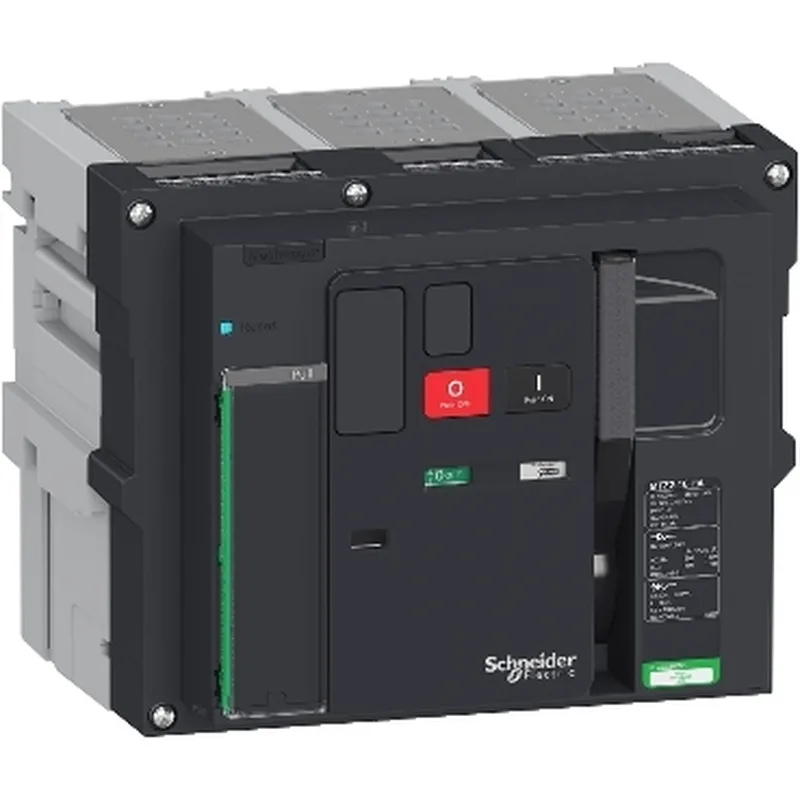

Switch disconnector, MasterPact MTZ2 16HA, 1600A, 145kA/690VAC 50/60Hz (Icm), 3P, drawout
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Network type | AC |
| Product or component type | Switch disconnector |
| Voltage | 1000 V AC 50/60 Hz EN/IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz EN/IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kVEN/IEC 60947-3 |
| [Icw] rated short-time withstand current | 36 kA 3 s EN/IEC 60947-3 66 kA 1 s EN/IEC 60947-3 |
| Breaking capacity | 66 kA Icu 220...690 V AC 50/60 Hz EN/IEC 60947-2 |
| [Ie] rated operational current | 1600 A AC 50/60 Hz 690 V |
| [Ics] rated service breaking capacity | 66 kA 220...690 V AC 50/60 Hz EN/IEC 60947-2 |
| [Icm] rated short-circuit making capacity | 145 kA peak 220...690 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P |
| Utilisation category | AC-23A AC-3 |
| IP degree of protection | IP30 |
| Mounting mode | Drawout |
| Mounting support | Chassis |
| Connection pitch | 4.5 in (115 mm) |
| Switch-disconnector name | MasterPact MTZ2 16 HA |
| Pollution degree | 3 EN/IEC 60947-4-1 |
| Depth | 15.9 in (403 mm) |
| Width | 17.4 in (441 mm) |
| Height | 17.3 in (439 mm) |
| Electrical durability | AC-23A 10000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 AC-23A 10000 cycles 690 V AC 50/60 Hz EN/IEC 60947-3 AC-3 6000 cycles 440 V AC 50/60 Hz EN/IEC 60947-3 AC-3 6000 cycles 690 V AC 50/60 Hz EN/IEC 60947-3 |
| Mechanical durability | 25000 cycles with periodic preventive maintenance EN/IEC 60947-3 |
| Standards | EN/IEC 60947-3 |
| Range | MasterPact |
| Visible break | No |
| Safety category | HA |
| Device application | Distribution |
| Suitability for isolation | Yes EN/IEC 60947-3 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
