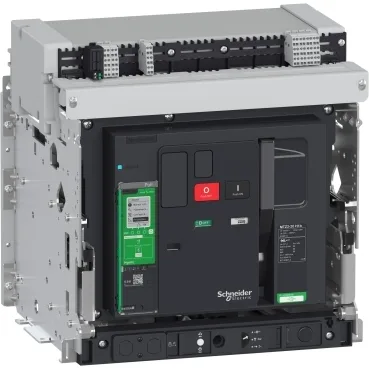

Circuit breaker frame, MasterPact MTZ2 20H1b drawout for MicroLogic X, 2000A, 85kA/440VAC (Icu), 3P
$8,646.16Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Push-button |
| Performance type | H1b 85 kA 415 V AC |
| Product or component type | Circuit breaker |
| Voltage | 1000 V AC 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| [Icw] rated short-time withstand current | 85 kA 1 s 75 kA 3 s |
| Current | 2000 A at 40 °C |
| [Ics] rated service breaking capacity | 85 kA at 690 V AC 50/60 Hz 85 kA at 380/415 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 187 kA 525 V AC at 50/60 Hz 187 kA 690 V AC at 50/60 Hz |
| [Icu] rated ultimate short-circuit breaking capacity | 85 kA at 690 V AC 50/60 Hz 85 kA at 380/415 V AC 50/60 Hz |
| Poles description | 3P |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP30 conforming to EN 60529 |
| Mounting mode | Drawout |
| Mounting support | Rails Base plate |
| Connection pitch | 115 mm |
| Upside connection | Front Rear |
| Downside connection | Front Rear |
| Maximum closing response time | 70 ms |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Operating altitude | 0...2000 m without derating 2000...5000 m with derating |
| Depth | Drawout circuit breaker with chassis: 403 mm Drawout circuit breaker without chassis: 300 mm |
| Width | Drawout circuit breaker with chassis: 441 mm Drawout circuit breaker without chassis: 378 mm |
| Height | Drawout circuit breaker with chassis: 439 mm Drawout circuit breaker without chassis: 300 mm |
| Electrical durability | 6000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 8000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2 |
| Mechanical durability | 20000 cycles with periodic preventive maintenance |
| Standards | IEC 60947-2 IEC 60364-8-1 |
| Range | MasterPacT |
| Control unit | Without control unit |
| Sensor rating | 1000 A 1250 A 1600 A 2000 A |
| Device short name | MTZ2 20 H1b |
| Device application | Power distribution protection |
| Selectivity category | Category B |
| Maximum breaking time | 25 ms |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| Integrated instantaneous protection (DIN in kA peak) | 171...209 kA |
