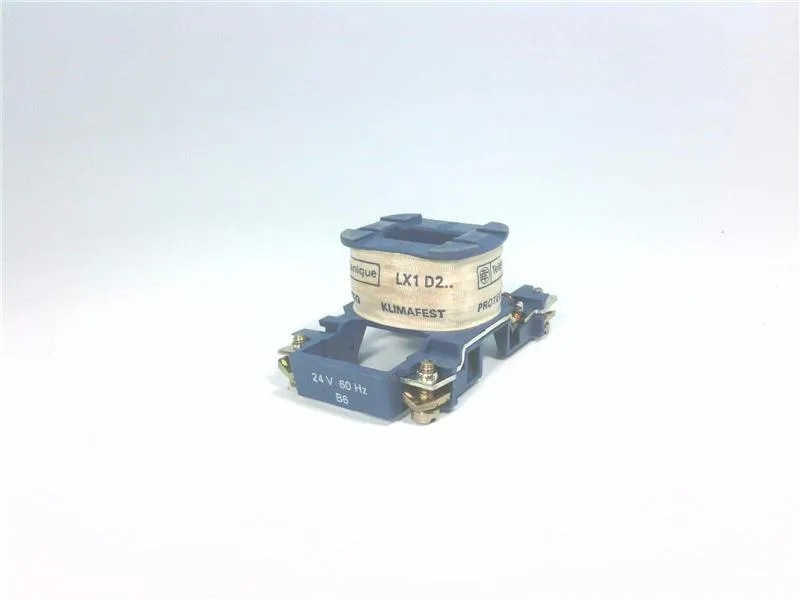

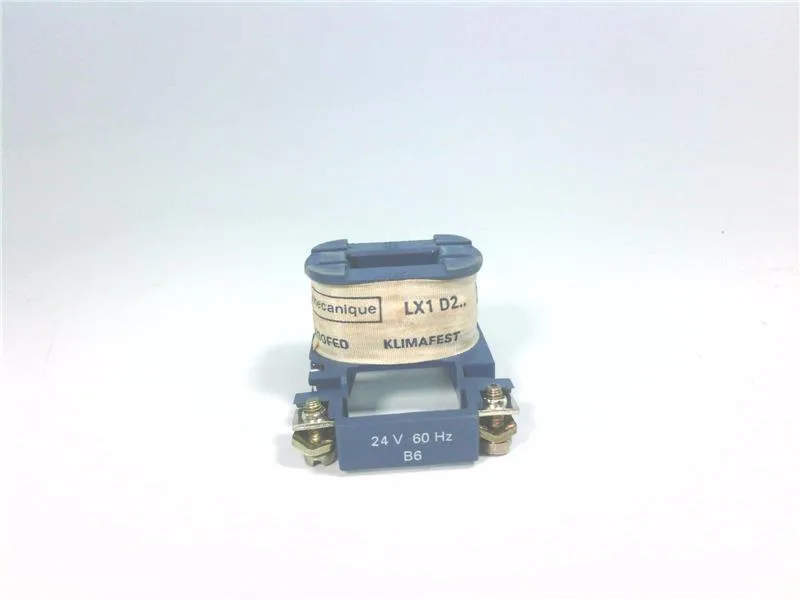

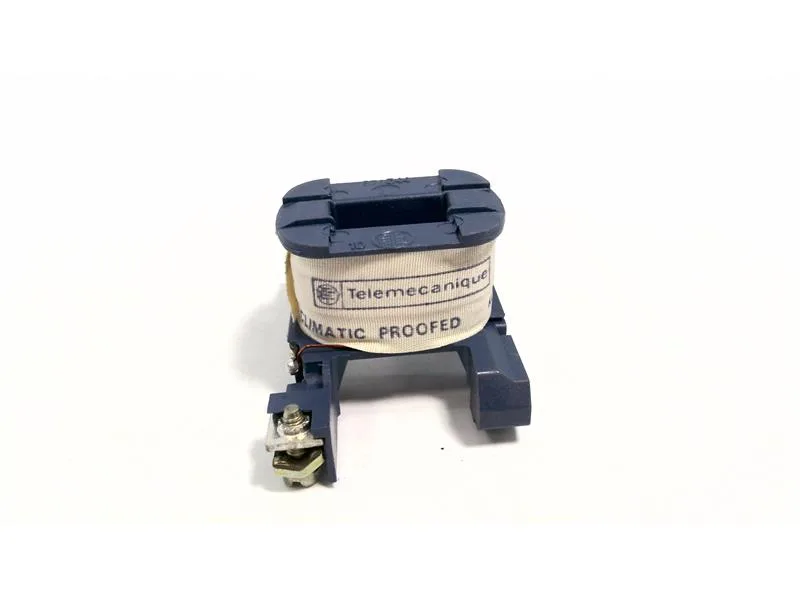

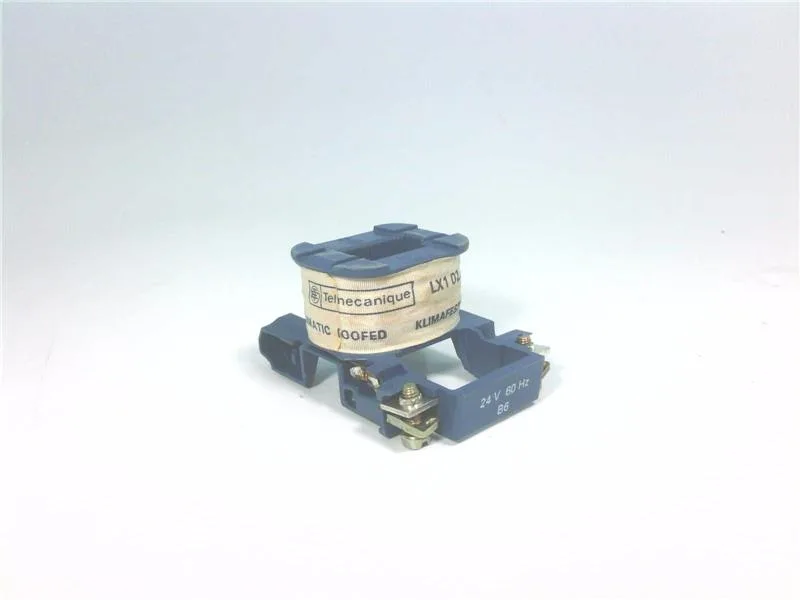

Schneider LX1-D2B6 Contactor & Starter Coils — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range | TeSys |
| Current | 18 A |
| Power | 70 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Frequency | 60 Hz |
| Inductance | 0.25 H |
| Coil voltage | 24 |
| Resistance | 4.98 Ohm at 20 °C |
| Coil technology | Without built-in suppressor module |
| Device short name | LX1D2 |
| Power consumption | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Control_circuit_type | AC at 60 Hz |
| Main_product_or_component_type | Contactor coil |
The LX1-D2B6 shares the same LX1D2 short-name and LC1D09...D18 contactor compatibility as the LXD1B7, but the LXD1B7 runs on 24 V AC at 50/60 Hz with a 5.37 Ohm coil resistance versus 4.98 Ohm for the LX1-D2B6 — a difference that matters only when replacing a coil in a 60 Hz-only panel without rewiring the control transformer.
Alternative models and sibling configurations in the same Schneider Electric series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
