Schneider LX1-D2E7 Solid State Overload Relays — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Current | 18 A |
| Frequency | 60 Hz |
| Range | TeSys |
| Power | 70 VA 50/60 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Package_type | PCE |
| Inductance | 1 H |
| Coil voltage | 48 |
| Resistance | 25 Ohm 68 °F (20 °C) |
| Coil technology | Without built-in suppressor module |
| Device short name | LX1D2 |
| Power consumption | 8 VA 50/60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Control_circuit_type | AC 50/60 Hz |
| Main_product_or_component_type | Contactor coil |
| Ordering and shipping details (Category) | 22341-CONTACTOR,D,K,&F ACCESS |

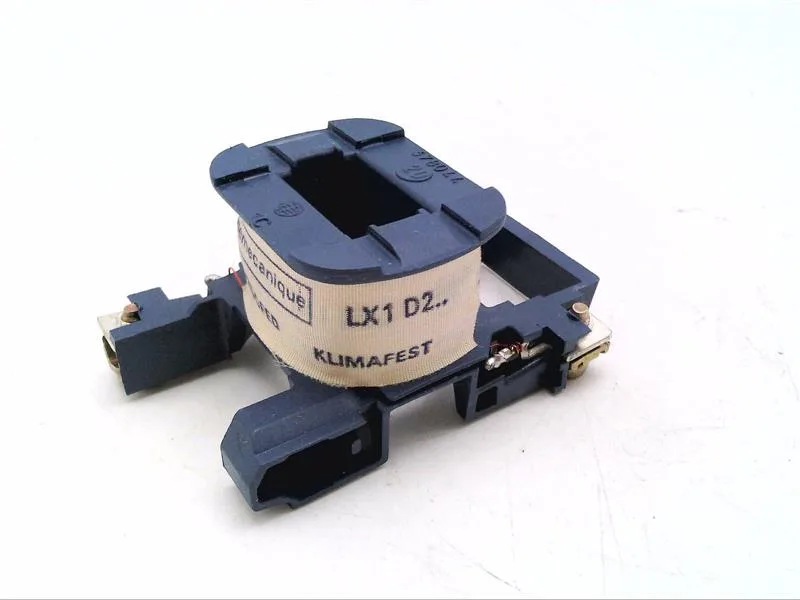

The LX1-D2E7 is a Schneider TeSys Deca contactor coil rated 48 V AC 50/60 Hz, drawing 70 VA inrush and 8 VA sealed, designed to fit the LC1D09...D18 contactor range. It is a replacement coil without a built-in suppressor module, so an external RC snubber or varistor should be added across the coil when driving inductive loads.
