Schneider Electric LX1D2M7
MPNLX1D2M7
Obsolete

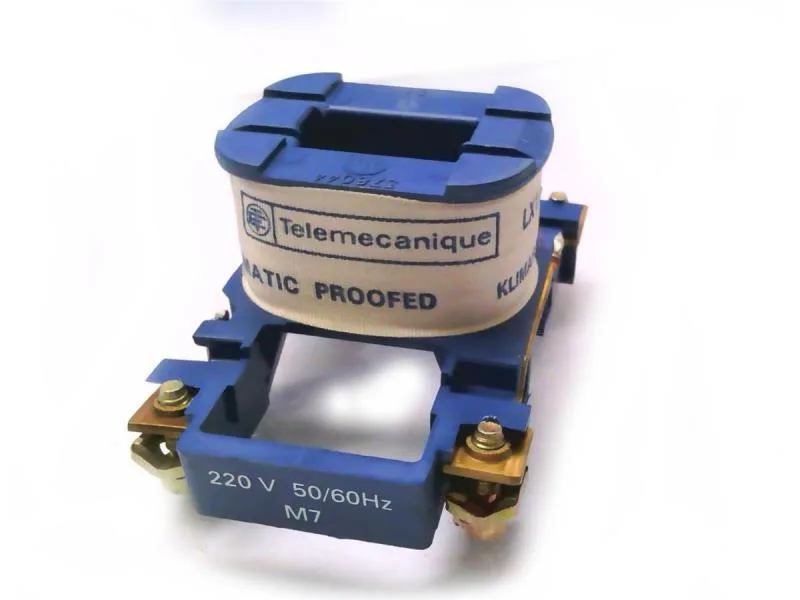

LX1D2M7 - CONTACTOR COIL by TELEMECANIQUE
$36.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 220/240 V AC 60 Hz 220/230 V AC 50 Hz |
| Control circuit voltage limits | Operational: 0.8...1.1 Uc at 50/60 Hz (at <131 °F (55 °C)) |
| Inrush power in | 70 VA 50/60 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 8 VA 50/60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Coil technology | Without built-in suppressor module |
| Device short name | LX1D2 |
| Average resistance | 539 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 22 H |
MPN
LX1D2M7
