Schneider Electric LX1D2Q7
MPNLX1D2Q7
Obsolete

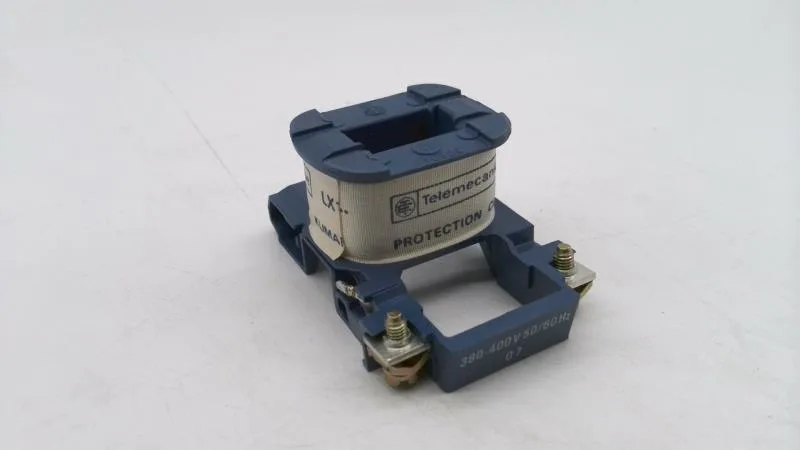

LX1D2Q7 - CONTACTOR + RELAY COIL by TELEMECANIQUE
$24.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 380...400 V AC 50/60 Hz |
| Control circuit voltage limits | Operational: 0.8...1.1 Uc at 50/60 Hz (at <131 °F (55 °C)) |
| Inrush power in | 70 VA 50/60 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 8 VA 50/60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Coil technology | Without built-in suppressor module |
| Device short name | LX1D2 |
| Average resistance | 1580 Ohm 68 °F (20 °C) |
| Inductance of closed circuit | 60 H |
MPN
LX1D2Q7
