Schneider Electric LX1D2U5
MPNLX1D2U5
Obsolete

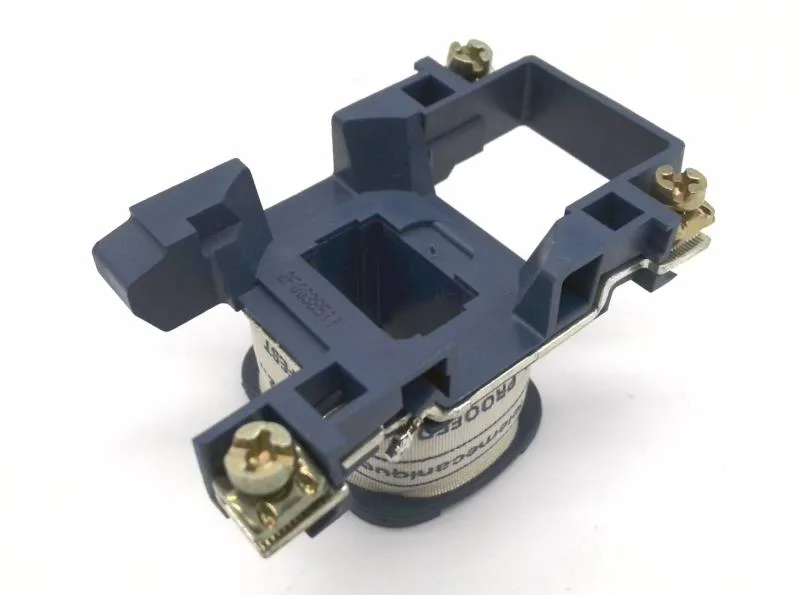

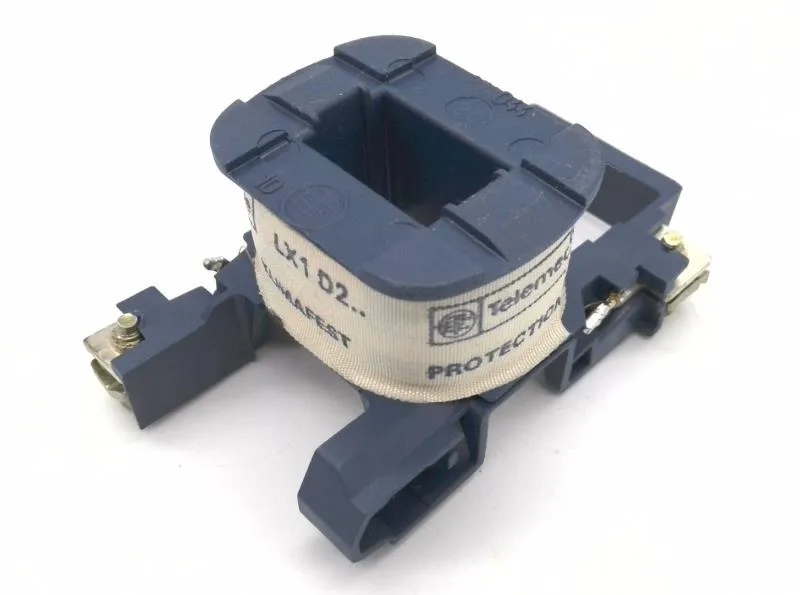

LX1D2U5 - CONTACTOR COIL by TELEMECANIQUE
$25.62Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range | TeSys |
| Coil technology | Without built-in suppressor module |
| Device short name | LX1D2 |
| Average resistance | 726.6 Ohm 68 °F (20 °C) |
| Inrush power in | 60 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Control circuit type | AC 50 Hz |
| Product or component type | Contactor coil |
| Inductance of closed circuit | 25 H |
| Coil voltage | 240 V AC 50 Hz |
| Control circuit voltage limits | Operational: 0.8...1.1 Uc at 50 Hz (at <131 °F (55 °C)) |
| Hold-in power consumption in | 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
MPN
LX1D2U5
