Schneider LX1D6U7 Contactor & Starter Coils — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 240 V AC 50/60 Hz |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at Operational: 0.8...1.1 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at <131 °F (55 °C)) |
| Inrush power in | 245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) 26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 4 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 6...10 W 50/60 Hz |
| Device short name | LX1D6 |
| Average resistance | 131 Ohm 68 °F (20 °C) |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 8.3 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |

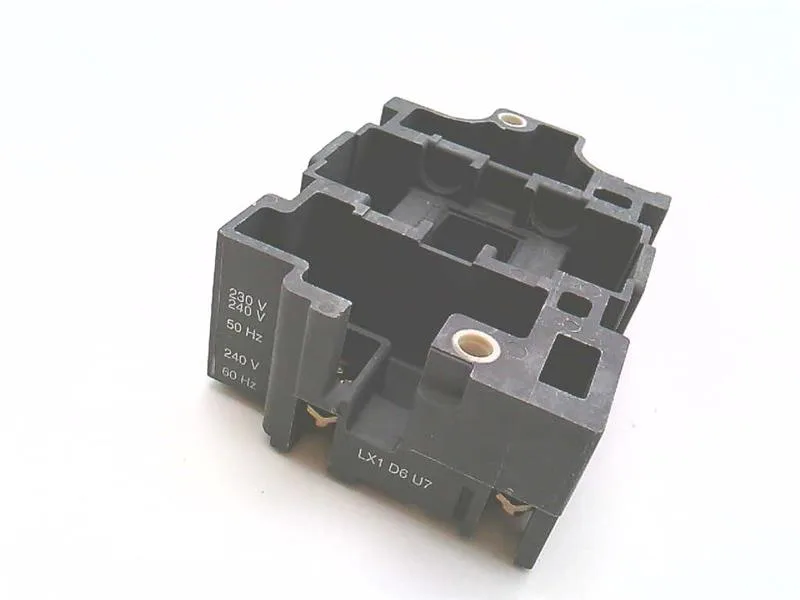

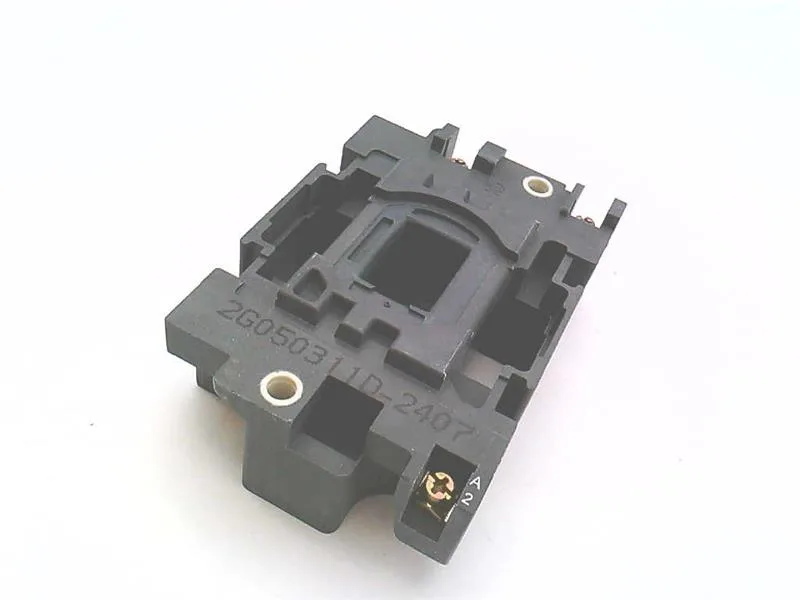

The LX1D6U7 is a Schneider TeSys Deca contactor coil rated 240 V AC 50/60 Hz, designed to fit LC1D80 and LC1D95 contactors rated up to 95 A. It draws 26 W of power consumption and dissipates 6 to 10 W at 50/60 Hz, with no built-in suppressor module.
Schneider discontinued the LX1D6U7 on 2020-08-27.
