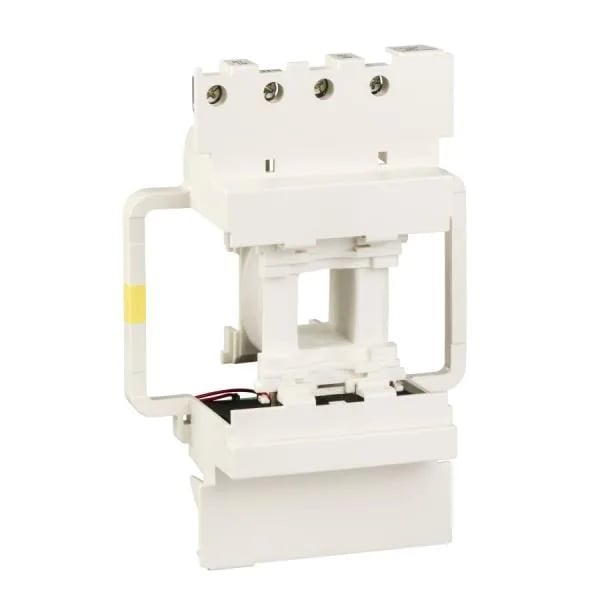

Schneider Electric LX1D8E7
MPNLX1D8E7
Obsolete
LX1D8E7 - 48VAC by TELEMECANIQUE
$45.72Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 48 V AC 50/60 Hz |
| Control circuit voltage limits | Drop-out: 0.3...0.5 Uc at 50/60 Hz (at Operational: 0.8...1.15 Uc at 50/60 Hz (at <131 °F (55 °C)) |
| Inrush power in | 280...350 VA 60 Hz cos phi 0.9 (at 68 °F (20 °C)) 280...350 VA 50 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 2...18 VA 60 Hz cos phi 0.9 (at 68 °F (20 °C)) 2...18 VA 50 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Mechanical durability | 8 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 3...4.5 W 50/60 Hz |
| Device short name | LX1D8 |
| Average resistance | 1061 Ohm 68 °F (20 °C) |
| Maximum operating rate | 1200 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 24.19 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LX1D8E7
