Schneider Electric LX1D8T6
MPNLX1D8T6
Obsolete

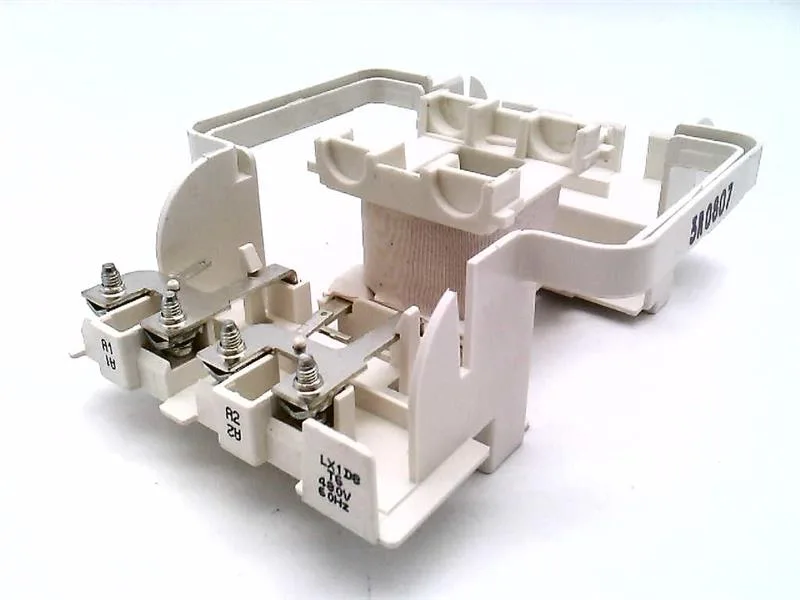

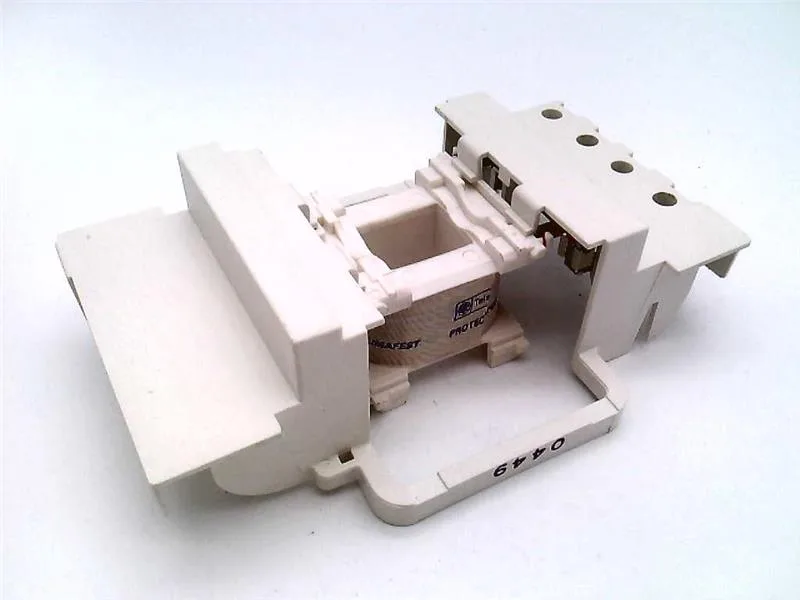

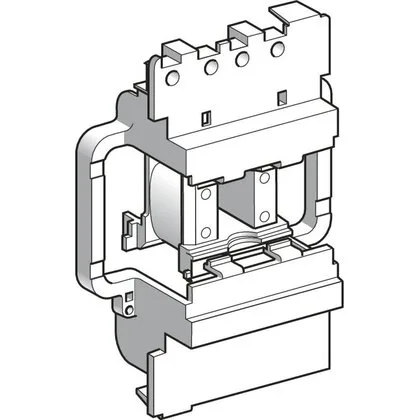

TeSys D - contactor coil - LX1D8 - 480 V AC 60 Hz for 115 A contactor|TeSys D - contactor coil - LX1D8 - 480 V AC 60 Hz for 115 A contactor
$67.31Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 480 V AC 60 Hz |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc at 60 Hz (at Drop-out: 0.3...0.6 Uc at 60 Hz (at <131 °F (55 °C)) |
| Inrush power in | 300 VA 60 Hz cos phi 0.8 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 22 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 8 Mcycles |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 3...8 W 60 Hz |
| Device short name | LX1D8 |
| Average resistance | 368.43 Ohm 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 25.55 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
MPN
LX1D8T6
