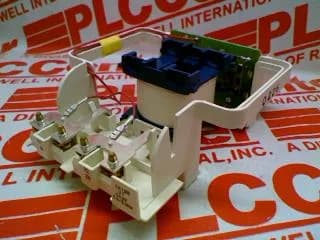

Schneider LX1D8U7 Contactor & Starter Coils — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 240 V AC 50/60 Hz |
| Control circuit voltage limits | Drop-out: 0.3...0.5 Uc at 50/60 Hz (at Operational: 0.8...1.15 Uc at 50/60 Hz (at <131 °F (55 °C)) |
| Inrush power in | 280...350 VA 60 Hz cos phi 0.9 (at 68 °F (20 °C)) 280...350 VA 50 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 2...18 VA 60 Hz cos phi 0.9 (at 68 °F (20 °C)) 2...18 VA 50 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Mechanical durability | 8 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 3...4.5 W 50/60 Hz |
| Device short name | LX1D8 |
| Average resistance | 9895 Ohm 68 °F (20 °C) |
| Maximum operating rate | 1200 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 210.72 H |
| Ambient air temperature for operation | 23...140 °F (-5...60 °C) |
The LX1D8U7 is a Schneider TeSys replacement coil for the LC1D115 and LC1D150 contactor frames, energised at 240 VAC 50/60 Hz and dissipating 2 W holding power with a 280 W inrush. It carries no built-in suppressor module, so external RC snubber or varistor is required across the coil terminals for inductive load switching.
