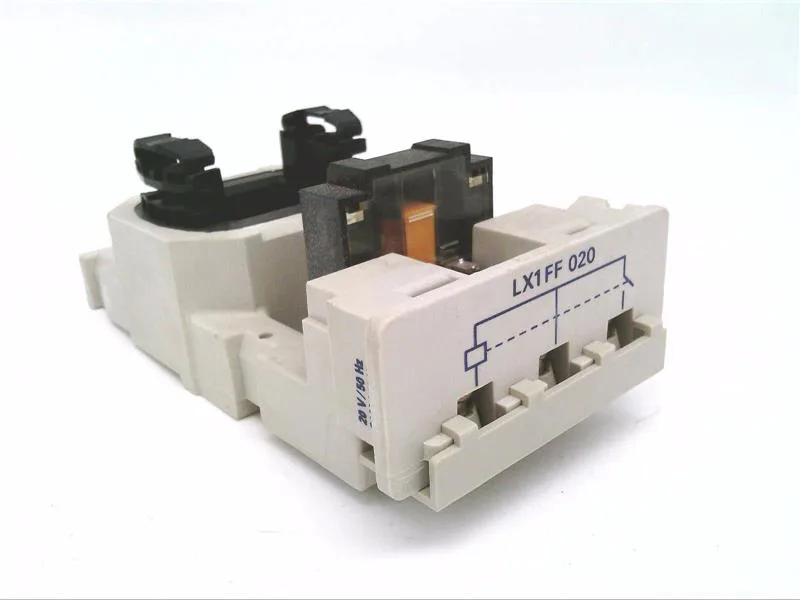

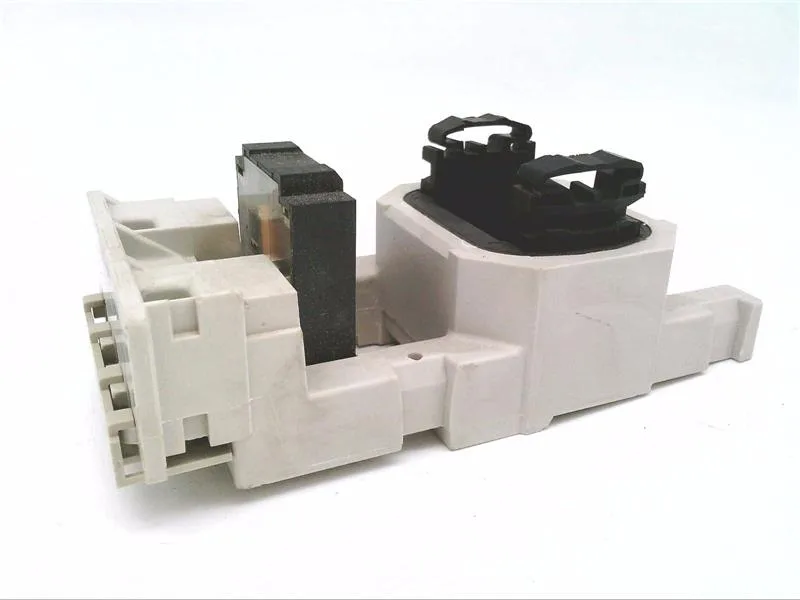

Schneider Electric LX1FF020
MPNLX1FF020
Obsolete
TeSys F - contactor coil - LX1FF - 20..24 V AC 50/60 Hz|TeSys F - contactor coil - LX1FF - 20..24 V AC 50/60 Hz
$72.39Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 20 V AC 50 Hz 24 V AC 60 Hz |
| Control circuit voltage limits | Drop-out 0.35...0.55 Uc 50/60 Hz 131 °F (55 °C)) Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C)) |
| Inrush power in | 550 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) 650 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 45 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) 55 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 23...35 ms closing 5...15 ms opening |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 12...16 W 50 Hz |
| Device short name | LX1FF |
| Average resistance | 0.2 Ohm 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 0.03 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX1FF020
