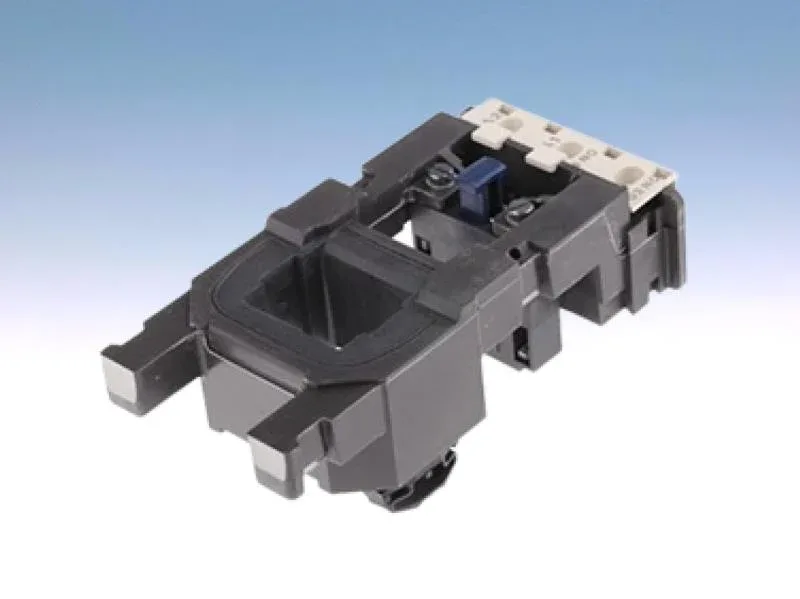

Schneider Electric LX1FF415
MPNLX1FF415
Obsolete
CONTACTOR COIL 440VAC IEC|CONTACTOR COIL 440VAC IEC
$68.06Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 415 V AC 50 Hz |
| Control circuit voltage limits | Drop-out 0.35...0.55 Uc 50/60 Hz 131 °F (55 °C)) Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C)) |
| Inrush power in | 550 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 45 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Operating time | 23...35 ms closing 5...15 ms opening |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 12...16 W 50 Hz |
| Device short name | LX1FF |
| Average resistance | 95.1 Ohm 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 12 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX1FF415
