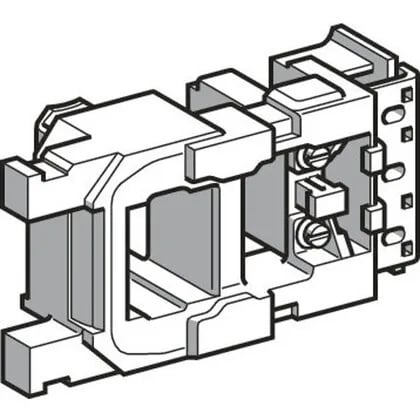

Schneider Electric LX1FG162
MPNLX1FG162
Obsolete
CONTACTOR COIL 208VAC|SQD LX1FG162 CONTACTOR COIL 208VAC
$67.31Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 200...208 V AC 60 Hz |
| Control circuit voltage limits | Drop-out 0.35...0.55 Uc 50/60 Hz 131 °F (55 °C)) Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C)) |
| Inrush power in | 970 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 66 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | 22341-CONTACTOR,D,K,&F ACCESS |
| Operating time | 20...35 ms closing 7...15 ms opening |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 18...24 W 60 Hz |
| Device short name | LX1FG |
| Average resistance | 8.8 Ohm 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 1.41 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX1FG162
