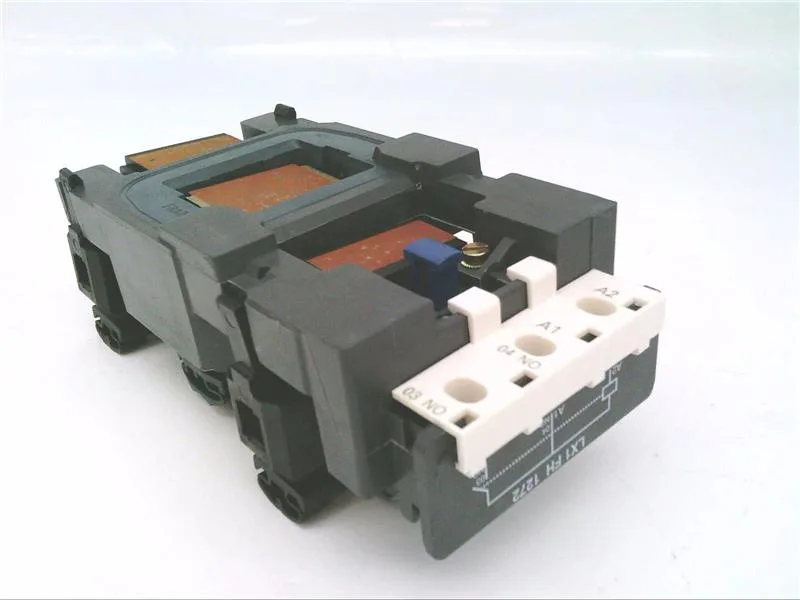

Schneider Electric LX1FH1272
MPNLX1FH1272
Active
TeSys F - contactor coil - LX1FH - 120...127 V AC 40...400 Hz|TeSys F - contactor coil - LX1FH - 120...127 V AC 40...400 Hz
$101.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range | TeSys |
| Operating time | 100...170 ms opening 40...65 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 8 W 40...400 Hz |
| Device short name | LX1FH |
| Average resistance | 22.9 Ohm inrush 68 °F (20 °C) 536 Ohm holding 68 °F (20 °C) |
| Inrush power in | 650 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Control circuit type | AC 40...400 Hz |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Product or component type | Contactor coil |
| Coil voltage | 120...127 V AC 40...400 Hz |
| Control circuit voltage limits | Drop-out 0.35...0.55 Uc 40...400 Hz 131 °F (55 °C)) Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) |
| Hold-in power consumption in | 10 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX1FH1272
