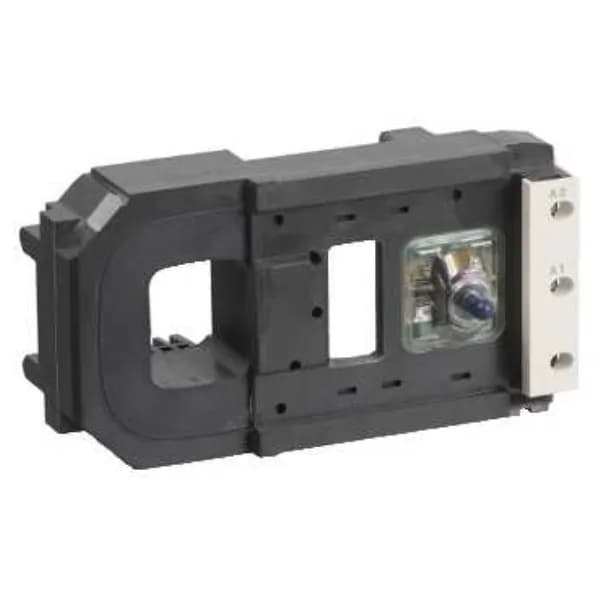

Schneider TeSys LX1FK070, contactor coil, 70 V AC 50/60 Hz, obsolete, graded and tested.
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 70 V AC 50/60 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 50/60 Hz 131 °F (55 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 100...170 ms opening 40...75 ms closing |
| Coil technology | Without built-in suppressor module |
| Device short name | LX1FK |
| Average resistance | 2.3 Ohm inrush 68 °F (20 °C) 66.4 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
Mounts on the matching TeSys contactor frame; the coil operates across 0.85–1.1 Uc and drops out between 0.3–0.5 Uc, with an ambient temperature range of -5 to 55 °C. For maximum operating rate of 2400 cycles/h, ensure proper ventilation and mounting orientation.
It is a 70 V AC 50/60 Hz coil without built-in suppression, part of the TeSys range.
Available via RFQ. Each coil is tested for operating time and resistance, and burned-in to verify holding characteristics.
