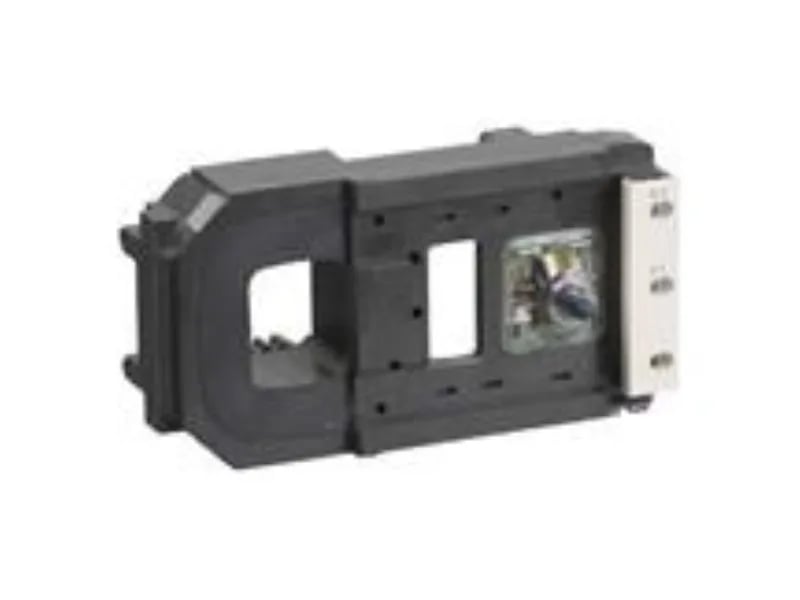

Schneider Electric LX1FK127
MPNLX1FK127
Active
LX1FK127 - CONTACTOR COIL by SQUARE D
$170.18Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 40...400 Hz |
| Product or component type | Contactor coil |
| Coil voltage | 120...127 V AC 40...400 Hz |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
| Inrush power in | 1100 VA 40...400 Hz cos phi 0.9 (at 68 °F (20 °C)) |
| Hold-in power consumption in | 18 VA 40...400 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Mechanical durability | 10 Mcycles |
| Range | TeSys |
| Category | US10I1222341 |
| Operating time | 100...170 ms opening 40...75 ms closing |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 18 W 40...400 Hz |
| Device short name | LX1FK |
| Average resistance | 11.5 Ohm inrush 68 °F (20 °C) 315 Ohm holding 68 °F (20 °C) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Inductance of closed circuit | 1.5 H |
| Ambient air temperature for operation | 23...131 °F (-5...55 °C) |
MPN
LX1FK127
